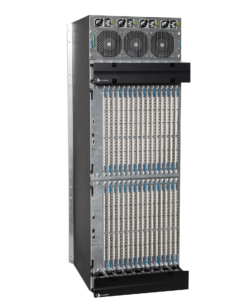

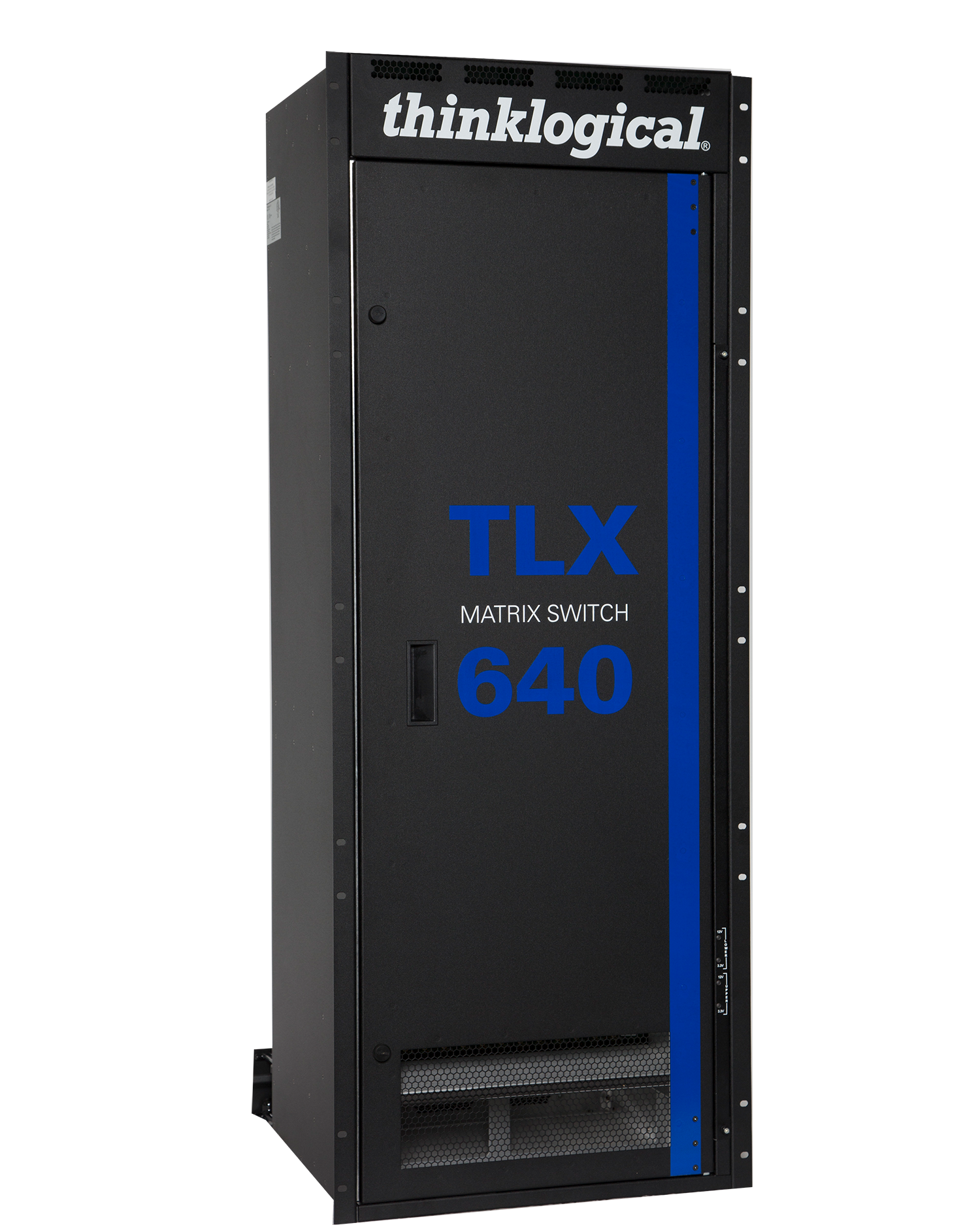

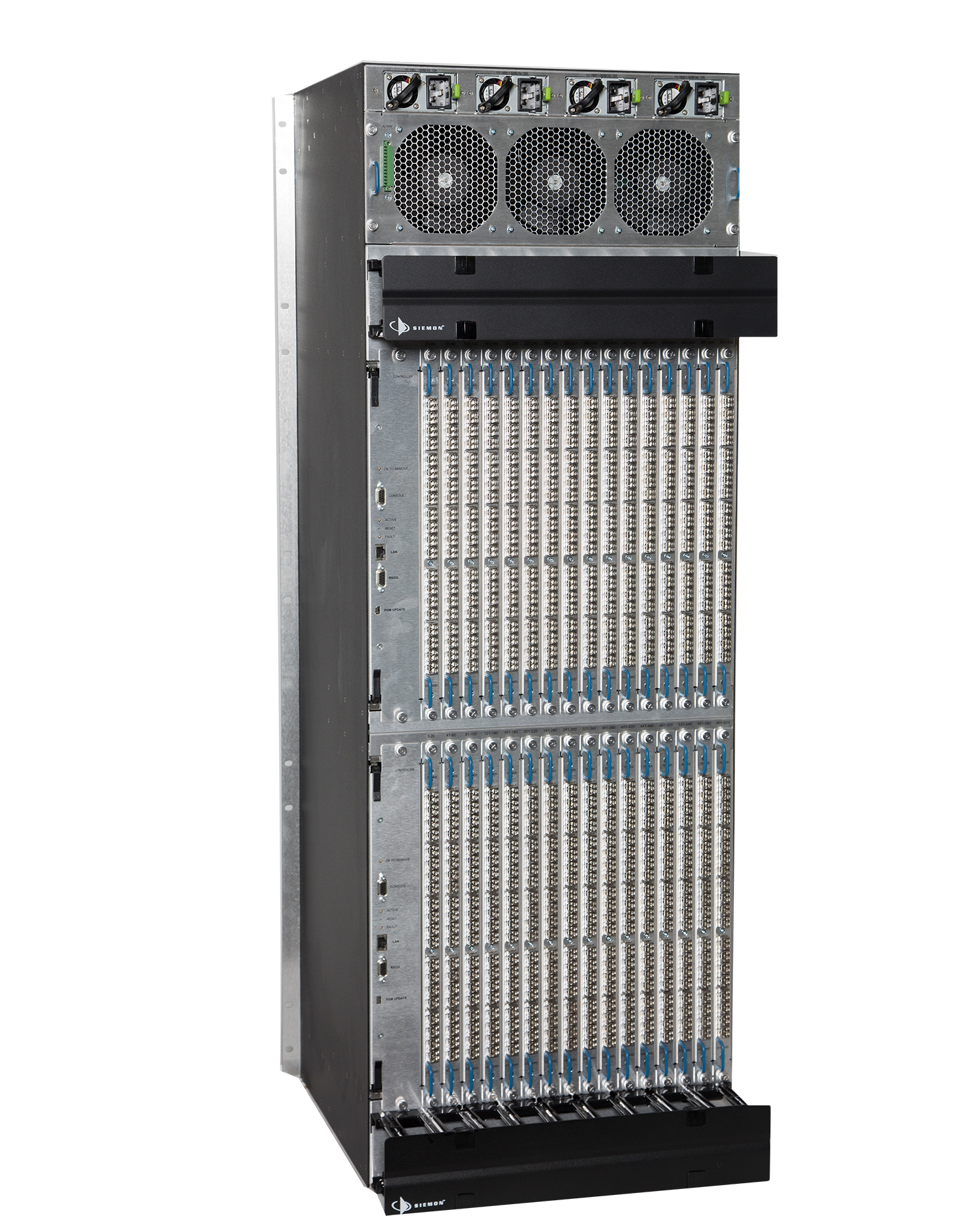

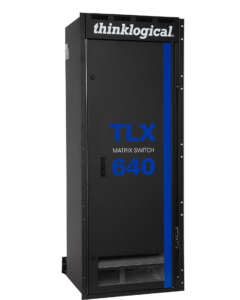

TLX640 Matrix Switch

640 Port 10G KVM, Video, HDMI, DisplayPort, USB, Audio Matrix Switch

  • Multi-mode fiber, single mode fiber, CATx and hybrid configurations
  • Non-blocking and protocol agnostic
  • Scalable from 20 to 640 ports
  • 10Gbps bandwidth per port
  • Supports video resolutions up to 4K DCI (4096×2160) 60Hz 4:4:4, 30 bits per pixel
  • Access sources up to 80 kilometers away, with no performance degradation
  • Partitioned and restricted switching
  • Hot-swap all critical system components to maximize system uptime
  • Redundant power supplies and control cards with automatic failover
  • Enhanced diagnostics and alarms provide extensive real-time monitoring and diagnostics of critical functions of the switch
  • Certified to Common Criteria EAL4, TEMPEST SDIP 27 Level B


TLX Matrix Switches are high performance, modular, non-blocking switches for complete, end-to-end switching of video, audio and peripheral signals over multi-mode or single mode fiber optic cable or CATx cable. TLX switches are protocol agnostic, supporting numerous video, audio and peripheral signals, allowing users to consolidate all of their system switching requirements in a single chassis.

The TLX640 is ideal for large system applications, scalable from 20 ports up to 640 ports. Each port supports 10Gbps bandwidth, preserving signal integrity to provide uncompressed, high resolution video with no artifacts, no added latency or lost frames. Thinklogical’s re-clocking technology ensures that every video and data stream is delivered in perfect synchronization.

KVM Switch, Matrix Switch, Fiber Switch, Video Switch, Audio Switch, CATx Switch, 10G Switch, 4K Switch, HDMI Switch, DisplayPort Switch, SDI Switch, USB Switch, EAL4 Switch, DISA JITC Switch, TEMPEST Switch, Secure KVM.


  • Rack size: EIA 19” (482.6mm)
  • Height: 28 RU-49” (1244.6mm)
  • Depth: 16.07” (408.2mm)
  • Depth with Cable Management: 20.36” (517.3mm)
  • Tolerance:± .039” (.991mm)
  • Weight: 132lb (59.87kg)
  • Shipping weight: 160lb (72.57kg)
  • Ports: 20×20 min/640×640 max
  • Alarm Relay Contacts: Max DC: 1A at 30VDC; Maz AC: 0.3A at 125VAC; Contact resistance max: 100mΩ
  • Operating Temp: 0° to 50°C (32° to 122°F)
  • Humidity: 5 to 95% RH, non-condensing
  • Power Requirements: AC Input: 100-240VAC, 47-63Hz; Universal power supply
  • Power Consumption: ~2100 watts, fully loaded
  • Compliance: Approvals for US, Canada and European Union
  • Warranty: One year from date of shipment. Extended warranties available


Data Sheet

How To Buy

Part Numbers

TLX-MSC-000640 TLX 640 Matrix Switch Chassis, Configurable with up to Thirty-Two (32) Data Input/Output Cards
TLX-MSD-M00020 TLX 640 Matrix Switch Data Input/Output Card, 20 Multi-Mode Fiber Ports
TLX-MSD-S00020 TLX 640 Matrix Switch Data Input/Output Card, 20 Single Mode Fiber Ports, 10km
TLX-MSD-000020 TLX 640 Matrix Switch Data Input/Output Card, Unpopulated for use with up to 20 Multi-Mode or Single Mode SFP+
TLX-MSM-C00640 TLX 640 Matrix Switch Controller Card
TLX-MSM-S00640 TLX 640 Matrix Switch Switch Card
TLX-MSM-F00640 TLX 640 Matrix Switch Fan
TLX-MSM-P00640 TLX 640 Matrix Switch Power Supply
