Camera Fiber Link

  • Camera Fiber-Link 3000: Supports Camera-Link™ base configurations with pixel clocks from 20-85MHz
  • Camera Fiber-Link 4000: Supports all Camera-Link™ full/medium/base configurations with pixel clocks from 20 -85MHz
  • Camera Fiber-Link 5000: Supports all Camera-Link™ dual-base configurations with pixel clocks from 20-85MHz
  • Camera Fiber-Link 6000: Supports two independent Camera-Link™ base configurations with pixel clocks from 20-85MHz
  • Extend camera signals up to:
    • 350 meters using standard multi-mode fiber
    • 1000 meters using eSX+ fiber
    • 10 kilometers using single-mode fiber
  • Transparent Camera-Link™ operation
  • Small form factor, units are self-contained and do not require user adjustments
  • Signal transmission via fiber optic cable – no RF interference

Serial Port (RJ45) with RS232 interface – Class 1 laser product

Industrial Options also include:

  •    Power Input: 5 to 12V or 12 to 24V
  •    Screw lock (threaded) power connector
  •    Use of users own DC input
  •    Din rail connectors for mounting
  •    Chassis ground post

Overview

Designed For High Performance Vision Applications

Developed for the Camera-Link™ standard for high performance digital cameras and frame grabbers, the Camera Fiber-Link system transmits signals from 350 meters up to 10 kilometers over multi-mode or single-mode fiber, without picking up electromagnetic interference that is common in these environments. This allows users to position a camera in any manufacturing setting or hostile factory floor environment, while keeping the computer secure in a controlled location.

Series Includes:

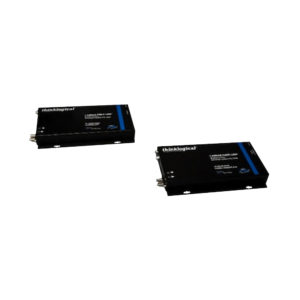

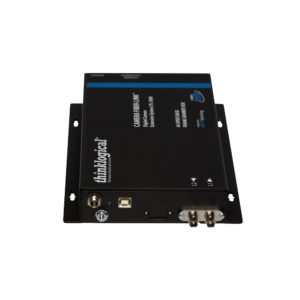

Camera Fiber-Link 3000 – TX/RX    CFL- 3000 Supports Base Configurations

Camera Fiber-Link 4000 – TX/RX    CFL- 4000 Supports Full/Medium/Base Configurations

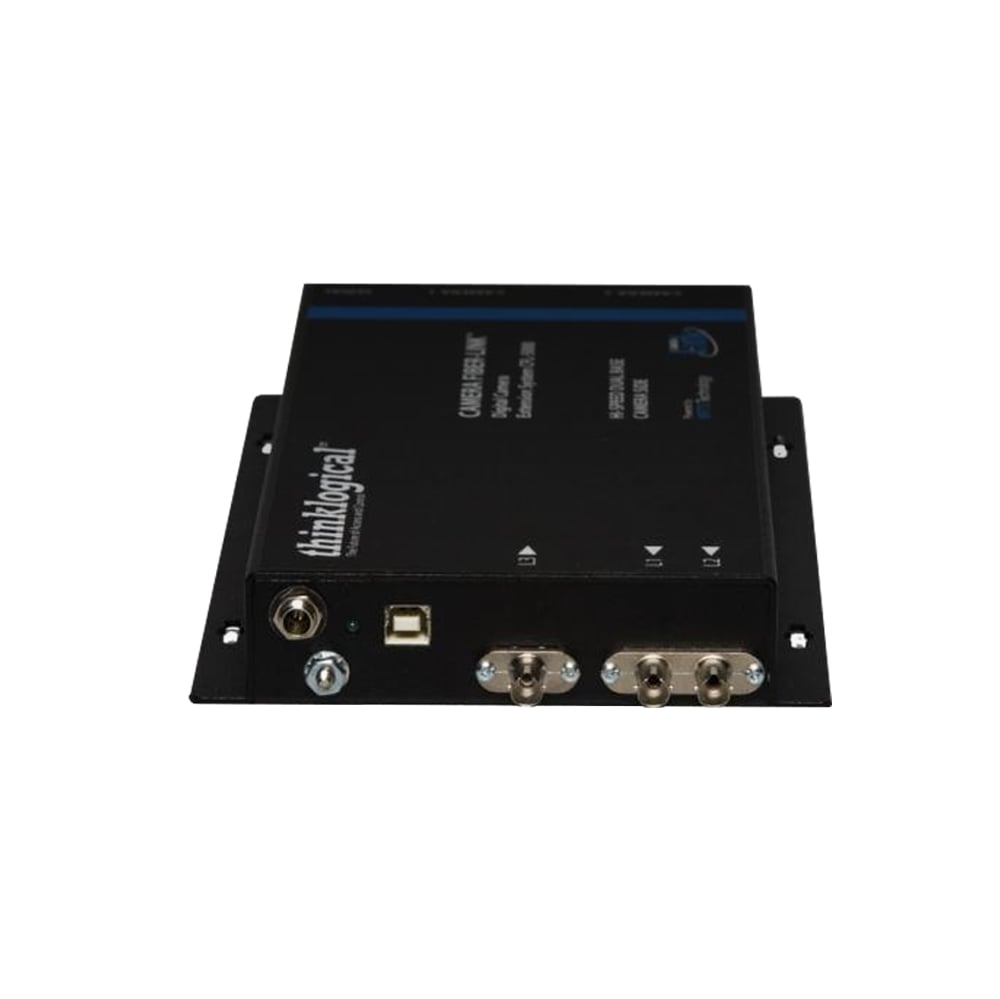

Camera Fiber-Link 5000 – TX/RX    CFL – 5000 Supports Dual-Base Configurations

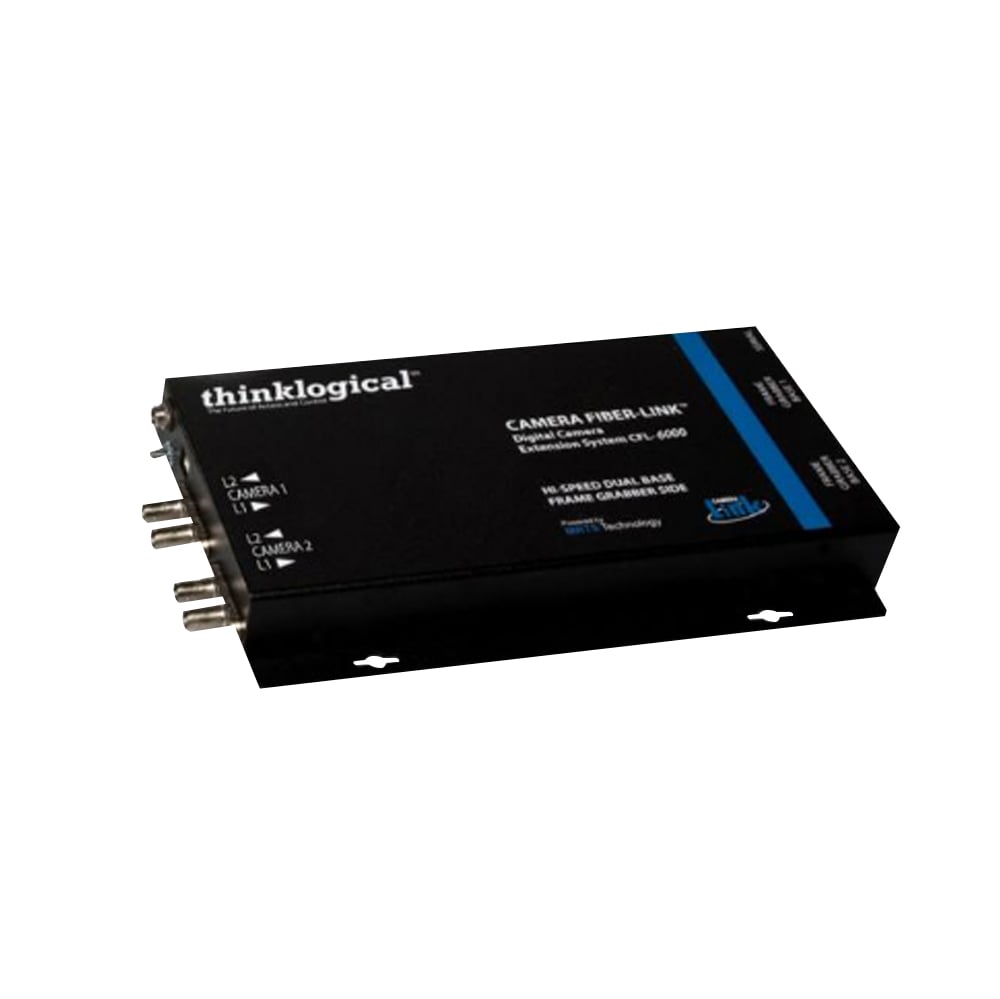

Camera Fiber-Link 6000 – RX only CFL – 6000 Supports Dual-Base Configurations with Two Independent Cameras

Specifications

Pixel Clock: 20-85 MHz

Supply Voltage: +5.0 VDC

Operating Temp.: 0°-50°C; (32°-122°F)

Humidity: 5-95% RH, non-condensing

Dimensions:

Height: 1.25” (3.2cm) Camera Fiber Link 3000, 4000

Height: 1.187” (3cm) Camera Fiber Link 3000, 4000

Depth: 5.44” (13.8cm)

Width: 6.88” (17.5cm) Camera Fiber Link 3000, 4000

Width: 9.00” (22.9cm) Camera Fiber Link 5000, 6000

Weight: 1lb (0.45kg) each\Shipping Weight: 6lb (2.72kg) pair (Tolerance: ± .039”; .100cm)

Optical Cable: Single-mode over two fibers/ Multi-mode over two fibers; (Fiber is available, not supplied)

Optical Distance

Up to 50 meters with type OM1

Up to 350 meters with type OM2

Up to 1000 meters with OM3 enhanced

Up to 40 kilometers with type OS2 (single-mode)

Power Consumption: <10 watts per unit

DC Adapter: AC/DC adapter universal

Input: 100-240VAC, 50-60Hz (supplied)

Compliance: Approvals for US, Canada,and European Union

Warranty: 12 months from date of shipment; Extended warranties available

How To Buy

Part Numbers

CAMERA LINK 3000: SINGLE MODE
CFL-000S03-SCRX Camera Fiber Link 3000, Base, Frame Grabber Side, Single Mode, SC/APC
CFL-000S03-SCTX Camera Fiber Link 3000, Base, Camera Side, Single Mode, SC/APC
CAMERA LINK 3000 OPTICS OPTION for SINGLE MODE
VOP-S05 Camera Fiber Link 3000 Optics Option for Transmitter or Receiver, Single Mode, Dual Fiber, 10KM
CAMERA LINK 3000: MULTI-MODE
CFL-000M03-LCRX Camera Fiber Link 3000, Base, Frame Grabber Side, Multi-Mode, LC
CFL-000M03-LCTX Camera Fiber Link 3000, Base, Camera Side, Multi-Mode, LC
CFL-000M03-SCRX Camera Fiber Link 3000, Base, Frame Grabber Side, Multi-Mode, SC
CFL-000M03-SCTX Camera Fiber Link 3000, Base, Camera Side, Multi-Mode, SC
CFL-000M03-STRX Camera Fiber Link 3000, Base, Frame Grabber Side, Multi-Mode, ST
CFL-000M03-STTX Camera Fiber Link 3000, Base, Camera Side, Multi-Mode, ST
CAMERA LINK 3000 OPTICS OPTIONS for MULTI-MODE
VOP-M04 Camera Fiber Link 3000 Optics Option for Transmitter or Receiver, Multi-Mode, Dual Fiber, 50M or 350M or 1000M, LC
VOP-M01 Camera Fiber Link 3000 Optics Option for Transmitter or Receiver, Multi-Mode, Dual Fiber, 50M or 350M or 1000M, SC or ST
CAMERA LINK 4000: SINGLE MODE
CFL-000S04-SCRX Camera Fiber Link 4000, Full, Frame Grabber Side, Single Mode, SC/APC
CFL-000S04-SCTX Camera Fiber Link 4000, Full, Camera Side, Single Mode, SC/APC
CAMERA LINK 4000 OPTICS OPTION for SINGLE MODE
VOP-S08 Camera Fiber Link 4000 Optics Option for Transmitter or Receiver, Single Mode, 3 Fibers, 10KM
CAMERA LINK 4000: MULTI-MODE
CFL-000M04-LCRX Camera Fiber Link 4000, Full, Frame Grabber Side, Multi-Mode, LC
CFL-000M04-LCTX Camera Fiber Link 4000, Full, Camera Side, Multi-Mode, LC
CFL-000M04-SCRX Camera Fiber Link 4000, Full, Frame Grabber Side, Multi-Mode, SC
CFL-000M04-SCTX Camera Fiber Link 4000, Full, Camera Side, Multi-Mode, SC
CFL-000M04-STRX Camera Fiber Link 4000, Full, Frame Grabber Side, Multi-Mode, ST
CFL-000M04-STTX Camera Fiber Link 4000, Full, Camera Side, Multi-Mode, ST
CAMERA LINK 4000 OPTICS OPTION for MULTI-MODE
VOP-M05 Camera Fiber Link 4000 Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 50M or 350M or 1000M, LC
VOP-M02 Camera Fiber Link 4000 Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 50M or 350M or 1000M, SC or ST
CAMERA LINK 5000: SINGLE MODE
CFL-000S05-SCRX Camera Fiber Link 5000, High Speed Dual Base, Frame Grabber Side, Single Mode, SC/APC
CFL-000S05-SCTX Camera Fiber Link 5000, High Speed Dual Base, Camera Side, Single Mode, SC/APC
CAMERA LINK 5000 OPTICS OPTION
for SINGLE MODE
Camera Fiber Link 5000 Optics Option for Transmitter or Receiver, Single Mode, 3 Fibers, 10KM
CAMERA LINK 5000: MULTI-MODE
CFL-000M05-LCRX Camera Fiber Link 5000, High Speed Dual Base, Frame Grabber Side, Multi-Mode, LC
CFL-000M05-LCTX Camera Fiber Link 5000, High Speed Dual Base, Camera Side, Multi-Mode, LC
CFL-000M05-SCRX Camera Fiber Link 5000, High Speed Dual Base, Frame Grabber Side, Multi-Mode, SC
CFL-000M05-SCTX Camera Fiber Link 5000, High Speed Dual Base, Camera Side, Multi-Mode, SC
CFL-000M05-STRX Camera Fiber Link 5000, High Speed Dual Base, Frame Grabber Side, Multi-Mode, ST
CFL-000M05-STTX Camera Fiber Link 5000, High Speed Dual Base, Camera Side, Multi-Mode, ST
CAMERA LINK 5000 OPTICS OPTIONS
for MULTI-MODE
VOP-M05 Camera Fiber Link 5000 Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 50M or 350M or 1000M, LC
VOP-M02 Camera Fiber Link 5000 Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 50M or 350M or 1000M, SC or ST
CAMERA LINK 6000: SINGLE MODE
CFL-000S06-SCRX Camera Fiber Link 6000, High Speed Dual Base, Frame Grabber Side, Single Mode, SC/APC
CAMERA LINK 6000 OPTICS OPTION
for SINGLE MODE
VOP-S0 Camera Fiber Link 6000 Optics Option for Receiver, Single Mode, 3 Fibers, 10KM
CAMERA LINK 6000: MULTI-MODE
CFL-000M06-LCRX Camera Fiber Link 6000, High Speed Dual Base, Frame Grabber Side, Multi-Mode, LC
CFL-000M06-SCRX Camera Fiber Link 6000, High Speed Dual Base, Frame Grabber Side, Multi-Mode, SC
CFL-000M06-STRX Camera Fiber Link 6000, High Speed Dual Base, Frame Grabber Side, Multi-Mode, ST
CAMERA LINK 6000 OPTICS OPTIONS
for MULTI-MODE
VOP-M0 Camera Fiber Link 6000 Optics Option for Receiver, Multi-Mode, 3 Fibers, 50M or 350M or 1000M, LC
VOP-M0 Camera Fiber Link 6000 Optics Option for Receiver, Multi-Mode, 3 Fibers, 50M or 350M or 1000M, SC or ST

Request a Quote
