Video Sync Reference

  • Compact sync generator
    • High-quality signals
    • Full format support
  • Automatically detects:
    • Tri-Level Sync
    • Bi-Level Sync
  • Two interfaces per module provides two inputs/ouputs per unit
  • Feature-rich at an aordable price:
    • Stand alone chassis
    • Modular chassis supports up to four interfaces

Overview

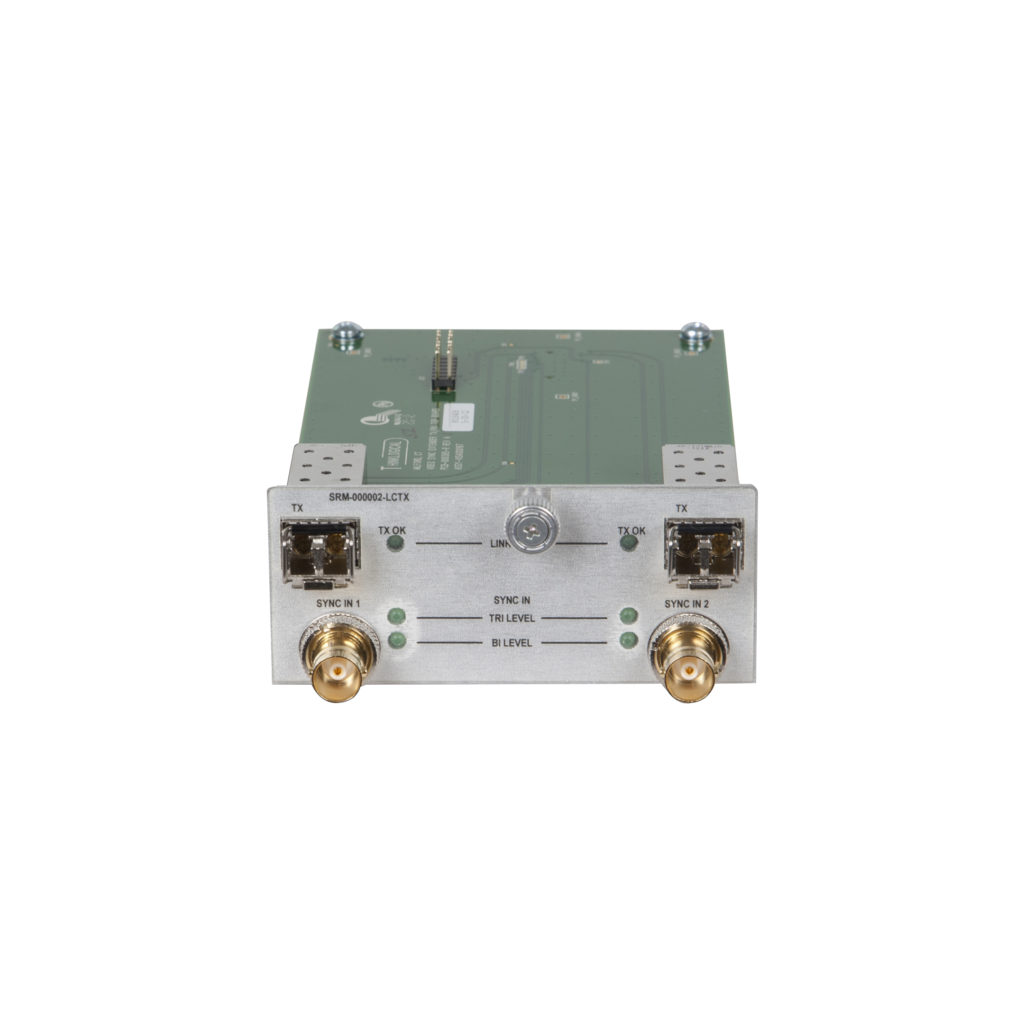

The Video Sync Reference Extender provides a reliable and highly effective method of streamlining any installation using multiple sources and outputs. The Video Sync Reference Extender features two outputs which can be independently controlled SD/HD sync outputs.

Specifications

HD Sync – Tri-level
SD Sync – Bi-level with black burst

Formats:
525i, 625i
720p23.98/24/25/29.97/30/60
1080i50/59.94/60
1080psf24
1080p23.98/24/25/29.97/30

Two groups of independently switchable outputs
allows simultaneous HD and SD sync generation

Multiple outputs can synchronize entire systems
without requiring a Sync DA

Operating Temp.: 0°-50°C; (32°-122°F)

Humidity: 5-95% RH, non-condensing

Dimensions:
Height: 1.592” (40.43 mm)
Depth: 6.366” (161.69 mm)
Width: 3.693” (93.80mm)

Power Consumption: 10 watts per unit

Compliance: Approvals for US, Canada, and European Union

Warranty: 12 months from date of shipment
Extended warranties available

Resources

Data Sheet

How To Buy

Part Numbers

SRM-000002-LCTX Video Sync Reference Extender, Transmitter-
SRM-000002-LCRX Video Sync Reference Extender, Receiver
