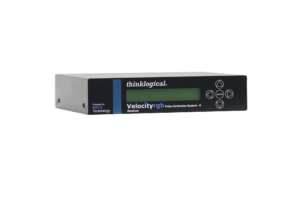

Velocity 9 Video Extension

  • Supports one RGB video signal
  • Audio and serial port
  • 6.25Gbps bandwidth
  • Extends RGB up to 10km
  • Simple plug and play

Overview

The Velocity RGB System 9 permits the placement of a analog monitor or projector from just a few meters up to 10 kilometers away from the controlling computer without loss of resolution. In addition to this standout capability and performance, the Velocity RGB 9 product line merges audio and serial technologies for A/V applications. This product give users an audio and serial port, which supports bi-directional stereo analog audio and RS-232 (two fibers required).

Specifications

  • Video Resolution: RGB 1600 x 1200 @ 60Hz
  • Supply Voltage: +5.0V DC
  • DC Adapter: AC/DC Adapter Universal Input 90-264 VAC (Supplied)
  • Operating Temperature: 0°-50°C (32°-122°F)
  • Humidity: 5-95% RH, Non-Condensing
  • Dimensions and Weights
  • Height: 1.19” (3.016cm) Depth: 10” (25.4cm)
  • Width: 6.49” (16.5cm) Weight: <1lb (0.45kg) Each
  • (Tolerance: ± .039”; .100cm)
  • Shipping Weight: 4lbs (1.81kg) Pair
  • Optical Cable
  • Single Mode over One or Two Fibers
  • Multi-Mode over One or Two Fibers
  • (Fiber is Available, Not Supplied)
  • Optical Distance:
  • Up to 50 Meters with Type OM1 Up to 350 Meters with Type OM2
  • Up to 1000 Meters with Type OM3 enhanced Up to 10 Kilometers with Type OS2 (           Single-Mode)
  • Power Consumption: 10 Watts per Unit
  • DC Adapter: AC/DC Adapter Universal Input 90-264 VAC (Supplied)
  • Compliance: Approvals for US, Canada, and European Union
  • Warranty: 12 Months from Date of Shipment. Extended Warranties Available

Resources

Data Sheet

How To Buy

Part Numbers

VELOCITYRGB 9: SINGLE-MODE
VEL-AV0S09-SCRX Velocity 9 RGB Video Extender Receiver, Single Link RGB, Local Display, AUX VGA Output, Serial, Audio, Single Mode, SC/APC
VEL-AV0S09-SCTX Velocity 9 RGB Video Extender Transmitter, Single Link RGB, Local Display & VGA Port, Serial, Audio, Single Mode, SC/APC
VEL-AV0S09-NKRX Velocity 9 RGB Video Extender Receiver, Single Link RGB, Local Display, AUX VGA Output, Serial, Audio, SM, Neutrik® LC/APC
VEL-AV0S09-NKTX Velocity 9 RGB Video Extender Transmitter, Single Link RGB, Local Display & VGA Port, Serial, Audio, SM, Neutrik® LC/APC
VELOCITYRGB 9 OPTICS OPTION
for SINGLE-MODE
VOP-S05 Velocity 9 Optics Option for Transmitter or Receiver, Single Mode, Dual Fiber, 10KM, SC/APC
VOP-S11 Velocity 9 Optics Option for Transmitter or Receiver, Single Mode, Dual Fiber, 10KM, Neutrik® LC/APC
VELOCITYRGB 9: MULTI-MODE
VEL-AV0M09-LCRX Velocity 9 RGB Video Extender Receiver, Single Link RGB, Local Display, AUX VGA Output, Serial, Audio, Multi-Mode, LC
VEL-AV0M09-LCTX Velocity 9 RGB Video Extender Transmitter, Single Link RGB, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, LC
VEL-AV0M09-SCRX Velocity 9 RGB Video Extender Receiver, Single Link RGB, Local Display, AUX VGA Output, Serial, Audio, Multi-Mode, SC
VEL-AV0M09-SCTX Velocity 9 RGB Video Extender Transmitter, Single Link RGB, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, SC
VEL-AV0M09-STRX Velocity 9 RGB Video Extender Receiver, Single Link RGB, Local Display, AUX VGA Output, Serial, Audio, Multi-Mode, ST
VEL-AV0M09-STTX Velocity 9 RGB Video Extender Transmitter, Single Link RGB, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, ST
VEL-AV0M09-NKRX Velocity 9 RGB Video Extender Receiver, Single Link RGB, Local Display, AUX VGA Output, Serial, Audio, M-Mode, Neutrik® LC
VEL-AV0M09-NKTX Velocity 9 RGB Video Extender Transmitter, Single Link RGB, Local Display & VGA Port, Serial, Audio, Multi-Mode, Neutrik® LC
VELOCITYRGB 9 OPTICS OPTIONS
for MULTI-MODE
VOP-M04 Velocity 9 Optics Option for Transmitter or Receiver, Multi-Mode, Dual Fiber, 50M or 350M or 1000M, LC or Neutrik® LC
VOP-M01 Velocity 9 Optics Option for Transmitter or Receiver, Multi-Mode, Dual Fiber, 50M or 350M or 1000M, SC or ST
