Velocity 63 Video Extension

Standard

  • Triple Head
  • Dual-Link DVI
  • TX Local RX Aux

Configurable

  • Fiber Connectors

Overview

The VelocityDVI 63 extension systems are designed to support three dual-link DVI displays in a single rack mount, 1RU chassis.

Specifications

  • Video Resolution: DVI-D, all single-link and dual-link DVI resolutions (maximum 330MHz pixel clock)
  • Optical Cable: Nine (9) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
  • Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
  • Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
  • Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
  • Data Rate: Forward channels: 6.25Gbps; Back Channels: 2Gbps
  • Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
  • Compliance: Approvals for United States of America, Canada, and European Union
  • Warranty: One year ∙ Extended warranties available for purchase
  • Mounting Brackets: 19” Rack Mounting Brackets Included
  • Power Consumption: 20 Watts
  • Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz
  • Weight: 4.00lbs (1.81kg)

Dimensions

  • Rack Size: EIA 19”
  • Height x Width x Depth: 1RU 1.72” (43.69mm) x 17.49” (444.25mm) x 8.41” (213.64mm)
  • Tolerance: ± 0.039” (1.00mm)

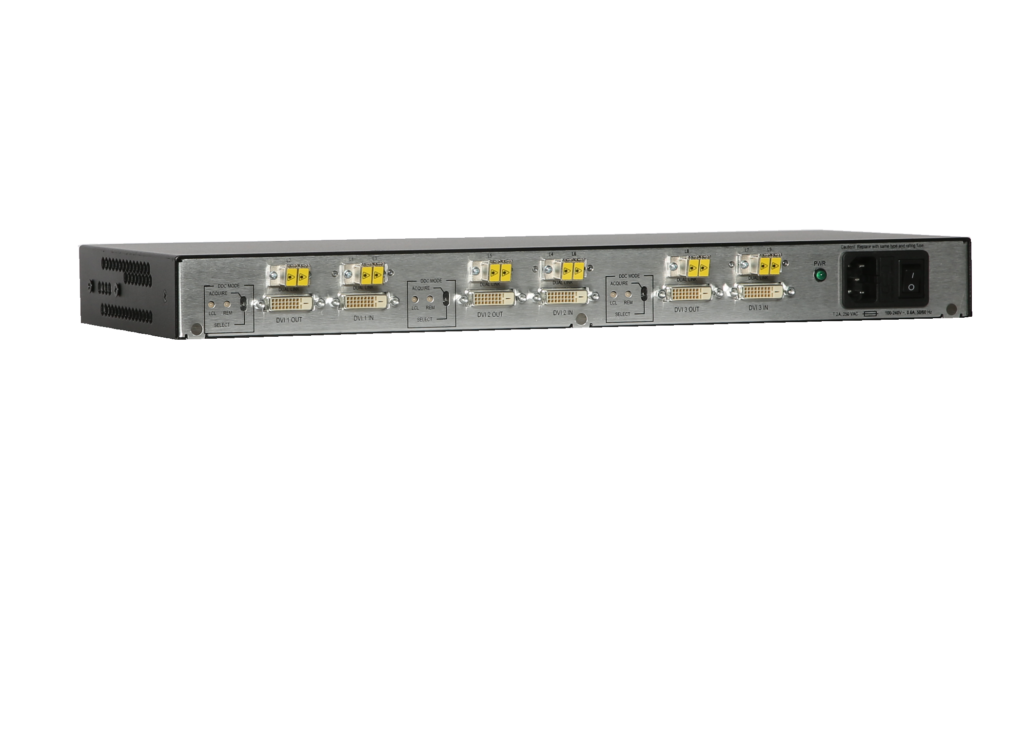

Connectors

  • Video: DVI-D (6)
  • Fiber Connectors: LC, SC, ST or Neutrik® (6)

Cables Included

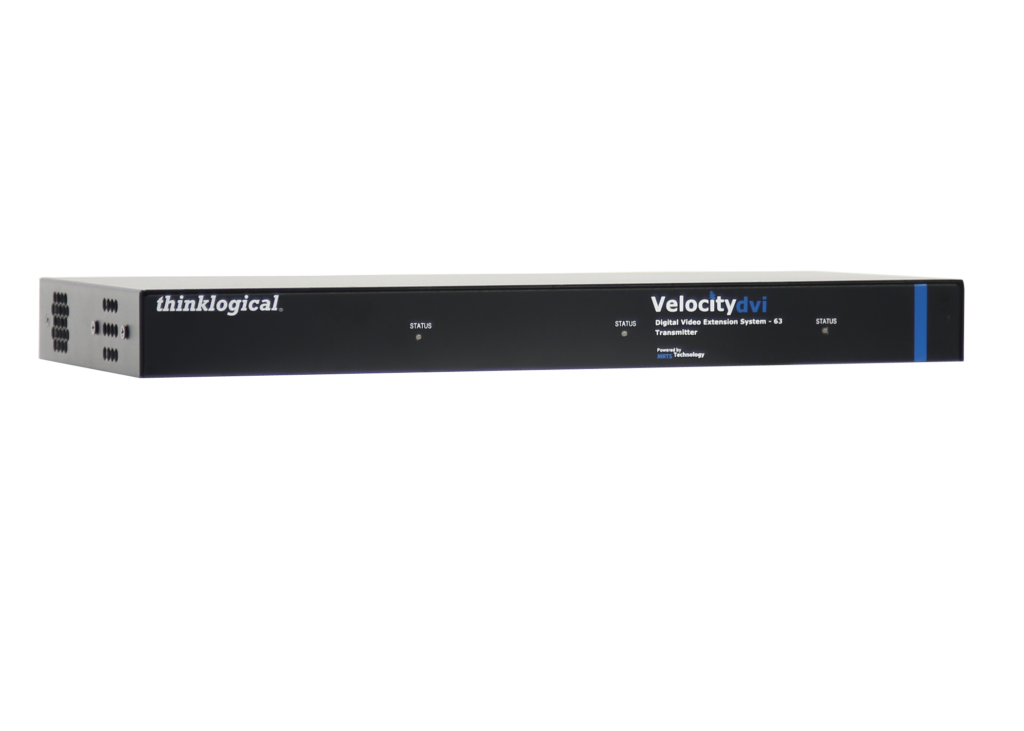

Transmitter:

  • (1) AC Power Cable
  • (3) DVI-D Dual-Link Male to Male, 2 Meters (CBL000023-002MR)

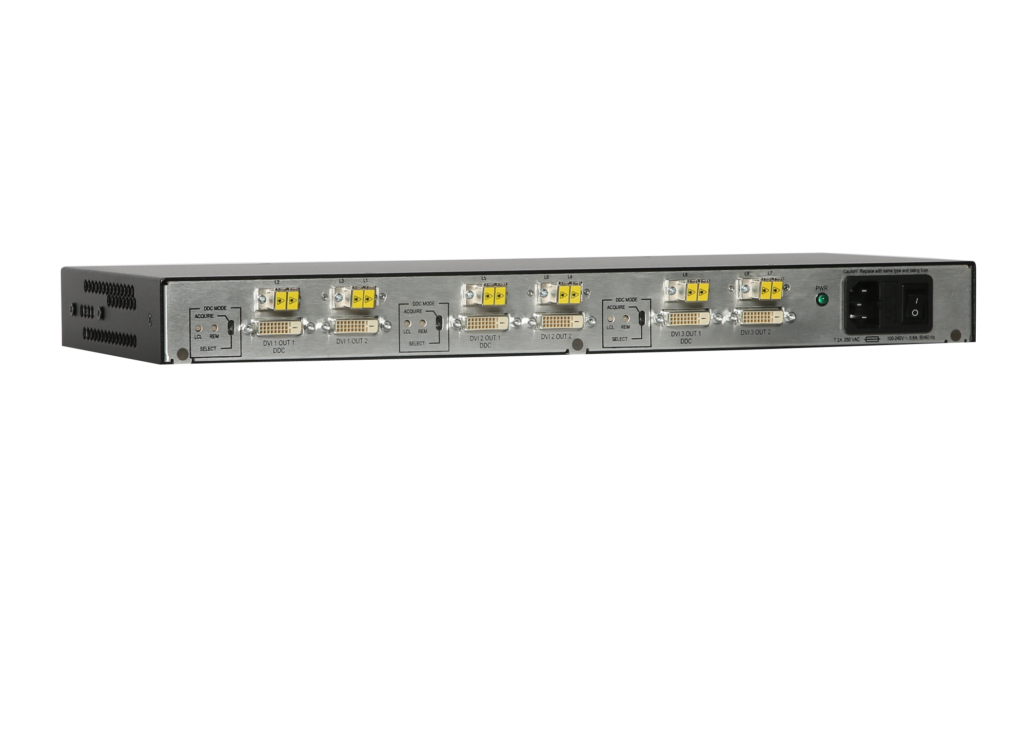

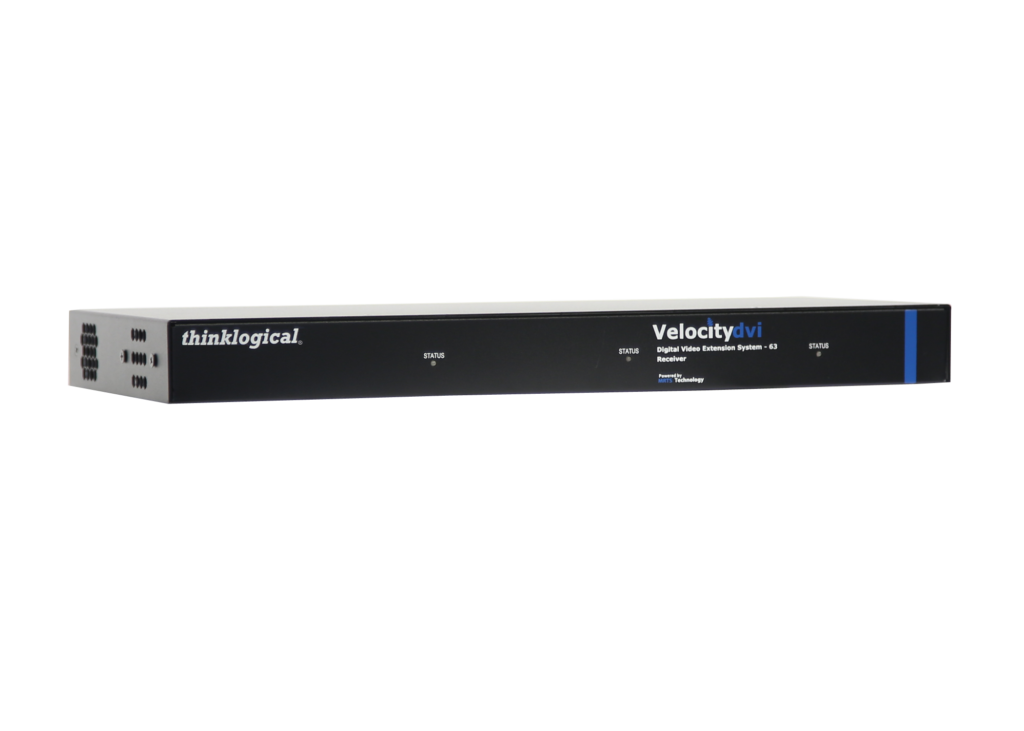

Receiver:

  • (1) AC Power Cable

Resources

Data Sheet

Manual

How To Buy

VEL-000M63-LCTX Velocity 63 Transmitter, Three Single Head, Dual-Link DVI, Multi-Mode, LC
VEL-000M63-LCRX Velocity 63 Receiver, Three Single Head, Dual-Link DVI, Multi-Mode, LC
VEL-000M63-SCTX Velocity 63 Transmitter, Three Single Head, Dual-Link DVI, Multi-Mode, SC
VEL-000M63-SCRX Velocity 63 Receiver, Three Single Head, Dual-Link DVI, Multi-Mode, SC
VEL-000M63-STTX Velocity 63 Transmitter, Three Single Head, Dual-Link DVI, Multi-Mode, ST
VEL-000M63-STRX Velocity 63 Receiver, Three Single Head, Dual-Link DVI, Multi-Mode, ST
