Velocity 6 Video Extension

Standard

  • Single Head
  • Dual link DVI
  • TX local RX Aux

Configurable

  • RS-232
  • Analog Audio
  • Network 10/100
  • Fiber Connection
  • HDCP Compatible

Overview

The VelocityDVI 6 extension systems are designed to support one dual-link DVI display. Extenders are custom configurable to also support full duplex stereo audio and either serial (RS-232) or 10/100 Network.

Specifications

  • Video Resolution: DVI-D, all single-link and dual-link DVI resolutions (maximum 330MHz pixel clock)
  • Optical Cable: Three (3) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
  • Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
  • Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
  • Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
  • Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
  • Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
  • Compliance: Approvals for United States of America, Canada, and European Union
  • Warranty: One year ∙ Extended warranties available for purchase
  • Mounting Brackets (VQM): See Modular Chassis Specifications
  • Mounting Brackets (VEL): Surface Mounting Brackets Included
  • Power Consumption: 10 Watts
  • Supply Voltage (VQM): Universal AC Power Supply, 100-240VAC, 47-63Hz
  • Supply Voltage (VEL): +5V DC, 4A, AC/DC Adapter Universal Input 100-240VAC, 50/60Hz
  • Weight (VQM): 0.50lb (0.23kg)
  • Weight (VEL): 1.00lb (0.45kg)

Dimensions

  • Rack Size (VQM): See Modular Chassis Specifications
  • Rack Size (VEL): EIA 19” 5RU Rackmount for 12 Extenders, See RAC-000002 (not included)
  • Height x Width x Depth (VQM): 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm)
  • Height x Width x Depth (VEL): 1.19”(30.15mm) x 5.44”(138.13mm) w/mounting brackets x 8.57”(217.60mm); Audio/Serial & Audio Network Width: 7.49”(190.17mm) w/mounting brackets
  • Tolerance: ± 0.039” (1.00mm)

Connectors

  • Video: DVI-D (2)
  • Audio MIC/LINE (Configurable): 3.5mm Jack (2)
  • RS-232 Serial Port (Configurable): RJ45 (1)
  • 10/100 Network (Configurable): RJ45 (1)
  • Software Updates (VQM): USB B (1) with Q-Series 2300, 4300 and T-Series Q-4200 Chassis
  • Software Updates (VEL): Mini USB (1)
  • Fiber Connectors (VQM): LC (1)
  • Fiber Connectors (VEL): LC, SC, ST or Neutrik® (1)

Cables Included

Transmitter:

  • (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R) [For Fixed Extenders, for Extender Modules see Modular Chassis Specifications]
  • (1) DVI-D Dual-Link Male to Male, 2 Meters (CBL000023-002MR)
  • Audio & Serial Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR); (1) DB9 Female RJ45 Modem (ADP-000025-R); (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)
  • Audio & Network Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR); (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)

Receiver:

  • (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R) [For Fixed Extenders, for Extender Modules see Modular Chassis Specifications]
  • Audio & Serial Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR); (1) DB9 Male RJ45 Modem (ADP-000019-R)
  • Audio & Network Configuration: (1) CAT 5, 2 Meters (CBL000001-002MR)

Contact Thinklogical for additional specifications for redundant, separate data, separate audio and multipath extenders.

How To Buy

Part Numbers

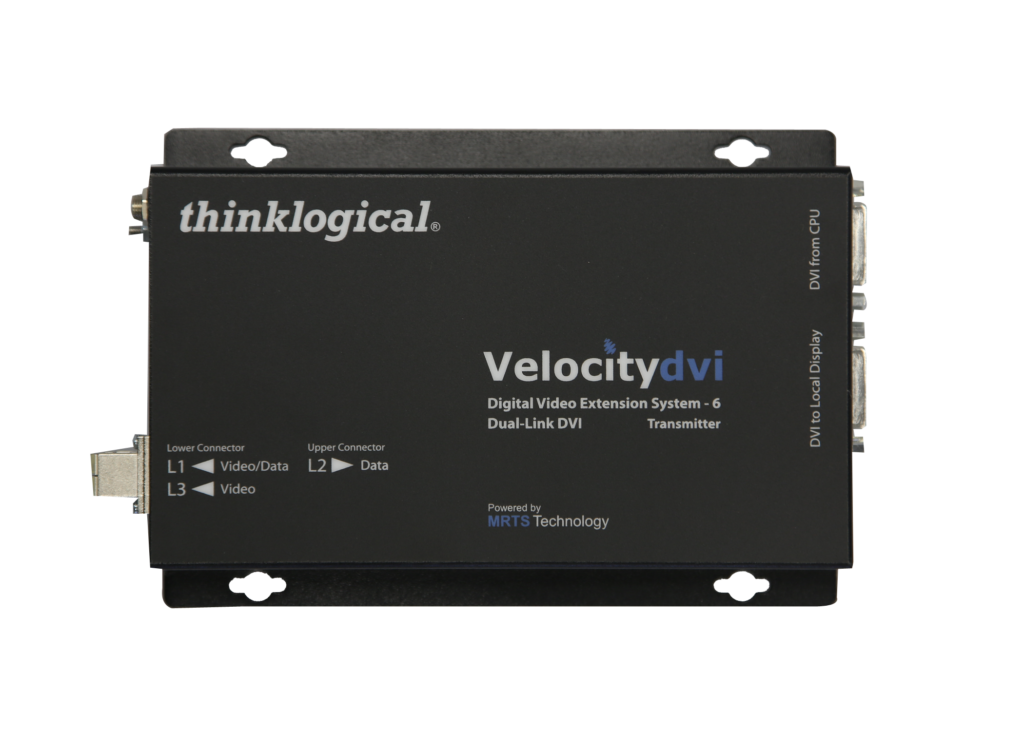

VEL-000M06-LCTX Velocity 6 Transmitter, Dual-Link DVI, HDCP Compatible, Multi-Mode, LC

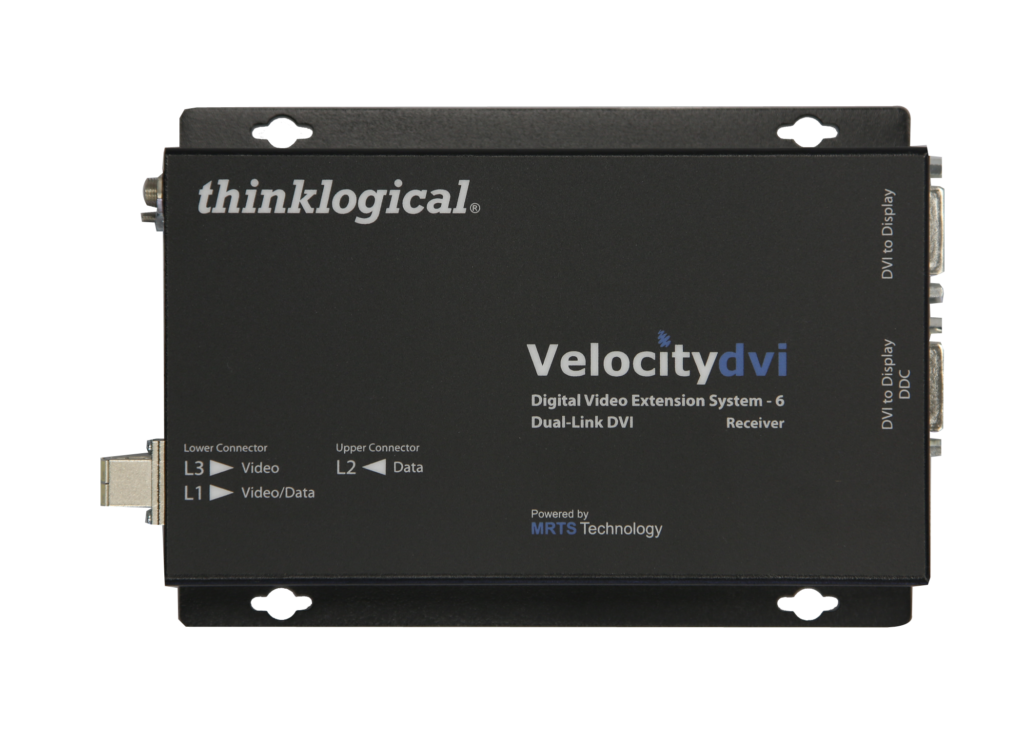

VEL-0H0006-LCRX Velocity 6 Receiver, Dual-Link DVI, HDCP Compatible, Multi-Mode, LC

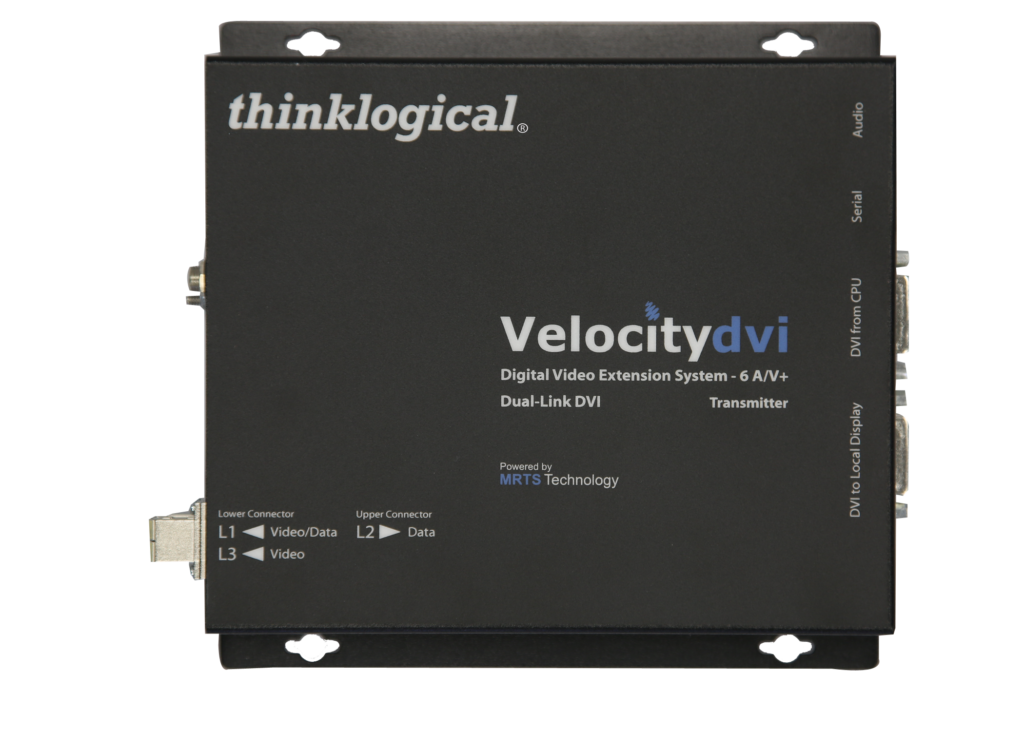

VEL-AV0M06-LCTX Velocity 6 Transmitter, Dual-Link DVI, HDCP Compatible, Audio, Serial, Multi-Mode, LC

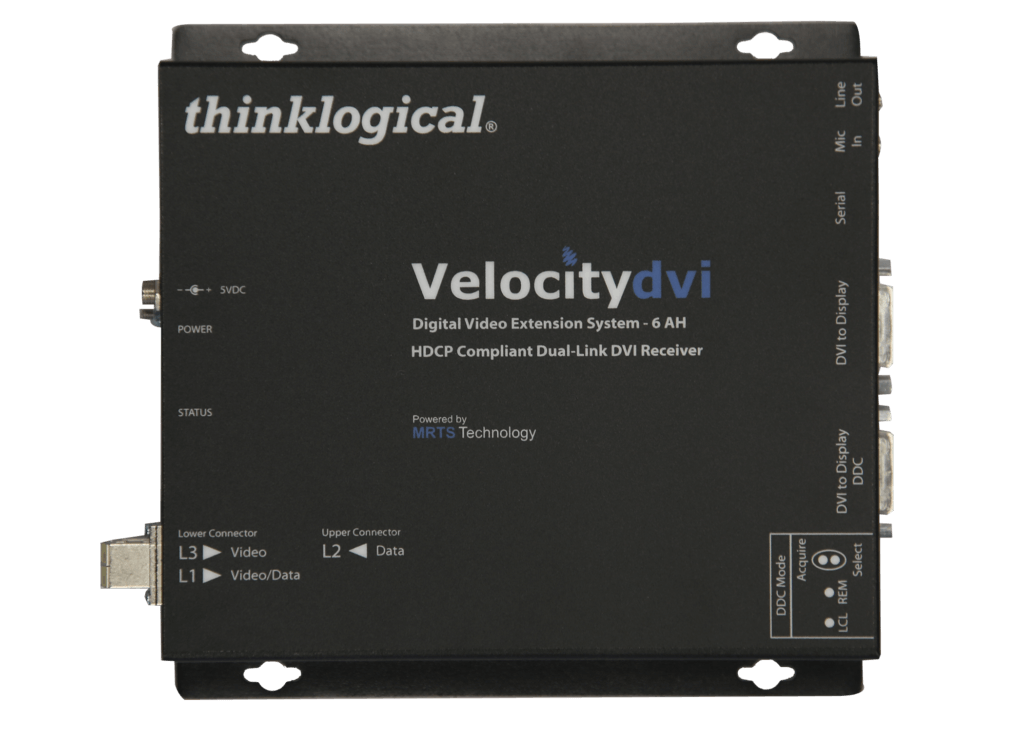

VEL-AH0006-LCRX Velocity 6 Receiver, Dual-Link DVI, HDCP Compatible, Audio, Serial, Multi-Mode, LC

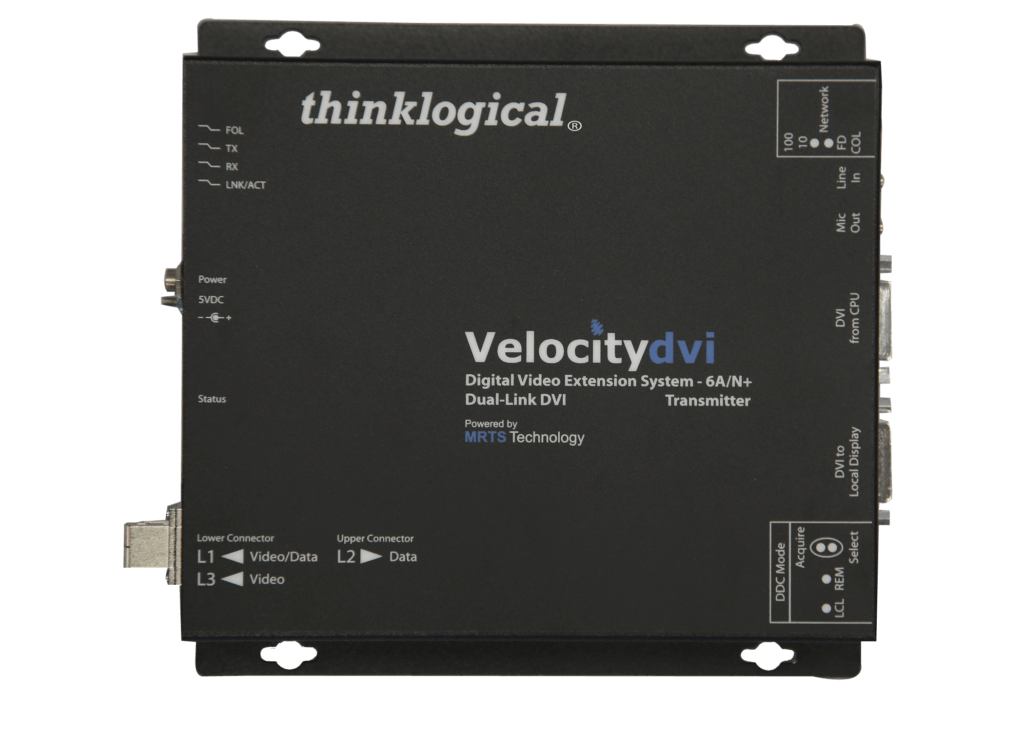

VEL-AN0M06-LCTX Velocity 6 Transmitter, Dual-Link DVI, HDCP Compatible, Audio, Network, Multi-Mode, LC

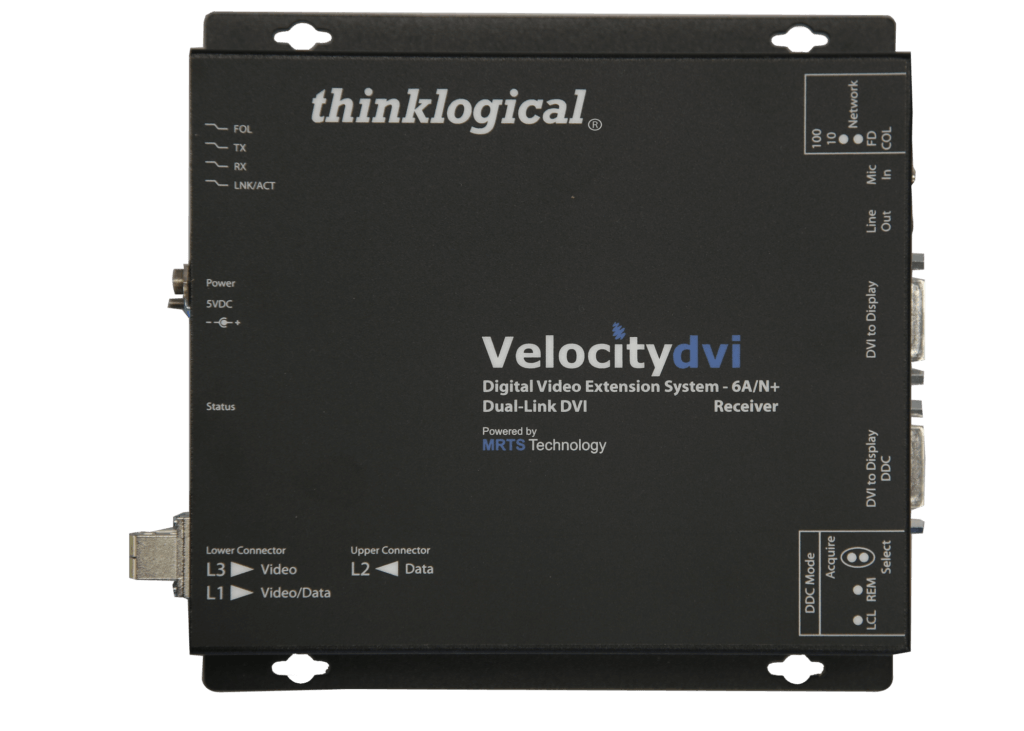

VEL-NH0006-LCRX Velocity 6 Receiver, Dual-Link DVI, HDCP Compatible, Audio, Network, Multi-Mode, LC
VQM-000006-LCTX Velocity Q-Series 6 Transmitter Module, Dual-Link DVI, Multi-Mode, LC
VQM-000006-LCRX Velocity Q-Series 6 Receiver Module, Dual-Link DVI, Multi-Mode, LC
VQM-AV0006-LCTX Velocity Q-Series 6 Transmitter Module, Dual-Link DVI, Audio, Serial, Multi-Mode, LC
VQM-AV0006-LCRX Velocity Q-Series 6 Receiver Module, Dual-Link DVI, Audio, Serial, Multi-Mode, LC
