Velocity 4 KVM Extension

  • Single Head
  • Single-Link DVI
  • TX Local RX Aux
  • Stereo Emitter
  • RS-232
  • Analog Audio
  • USB HID
  • PS/2

Configurable

  • RS-422
  • USB 2.0 (480 Mbps)
  • Network 10/100
  • FireWire 800
  • Professional (Digital) Audio
  • Fiber Connector

Overview

The VelocityKVM 4 extension systems are designed to support one single-link DVI display, USB HID, full duplex stereo audio, serial (RS-232), PS/2 and stereo emitter. Systems are custom configurable to also support serial RS-422, USB 2.0 (480 Mbps), FireWire 800, 10/100 Network, Professional Audio, and LC, SC or ST connector types.

Specifications

  • Video Resolution: DVI-D, all single-link DVI resolutions (maximum 165MHz pixel clock)
  • Optical Cable: Two (2) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
  • Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
  • Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
  • Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
  • Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
  • Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
  • Compliance: Approvals for United States of America, Canada, and European Union
  • Warranty: One year ∙ Extended warranties available for purchase
  • Mounting Brackets: See Modular Chassis Specifications 19” Rack Mounting Brackets Included
  • Power Consumption: 15 Watts 25 Watts
  • Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz Universal AC Power Supply, 100-240VAC, 47-63Hz
  • Weight: 1.00lb (0.45kg) 8.50lbs (3.86kg)

Dimensions

  • Rack Size: See Modular Chassis Specifications EIA 19”
  • Height x Width x Depth: 1.65” (41.91mm) x 7.41” (188.11mm) x 9.06” (230.15mm) 1RU: 1.72” (43.69mm) x 17.49” (444.25mm) x 14.94” (379.53mm)
  • Tolerance: ± 0.039” (1.00mm) ± 0.039” (1.00mm)

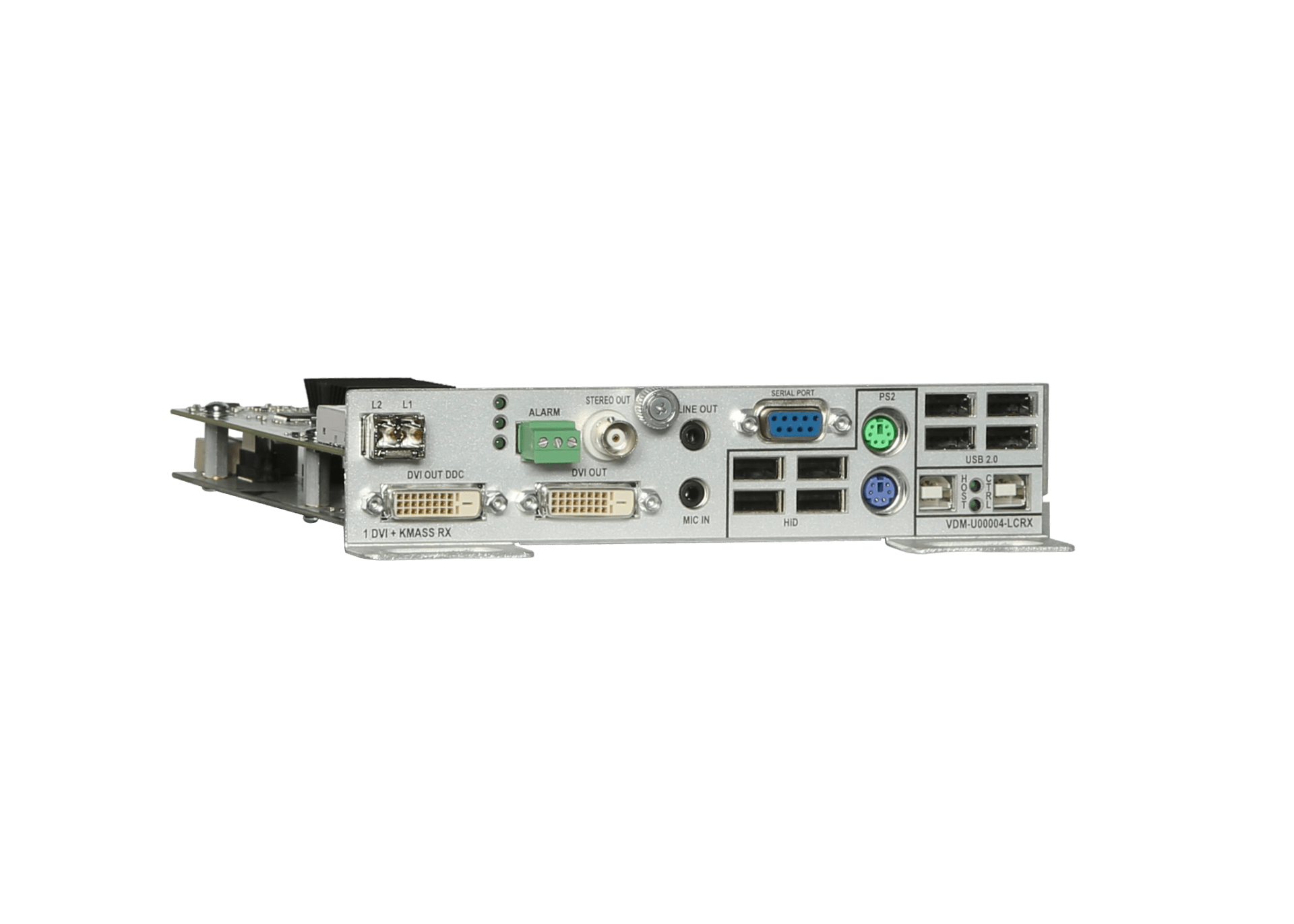

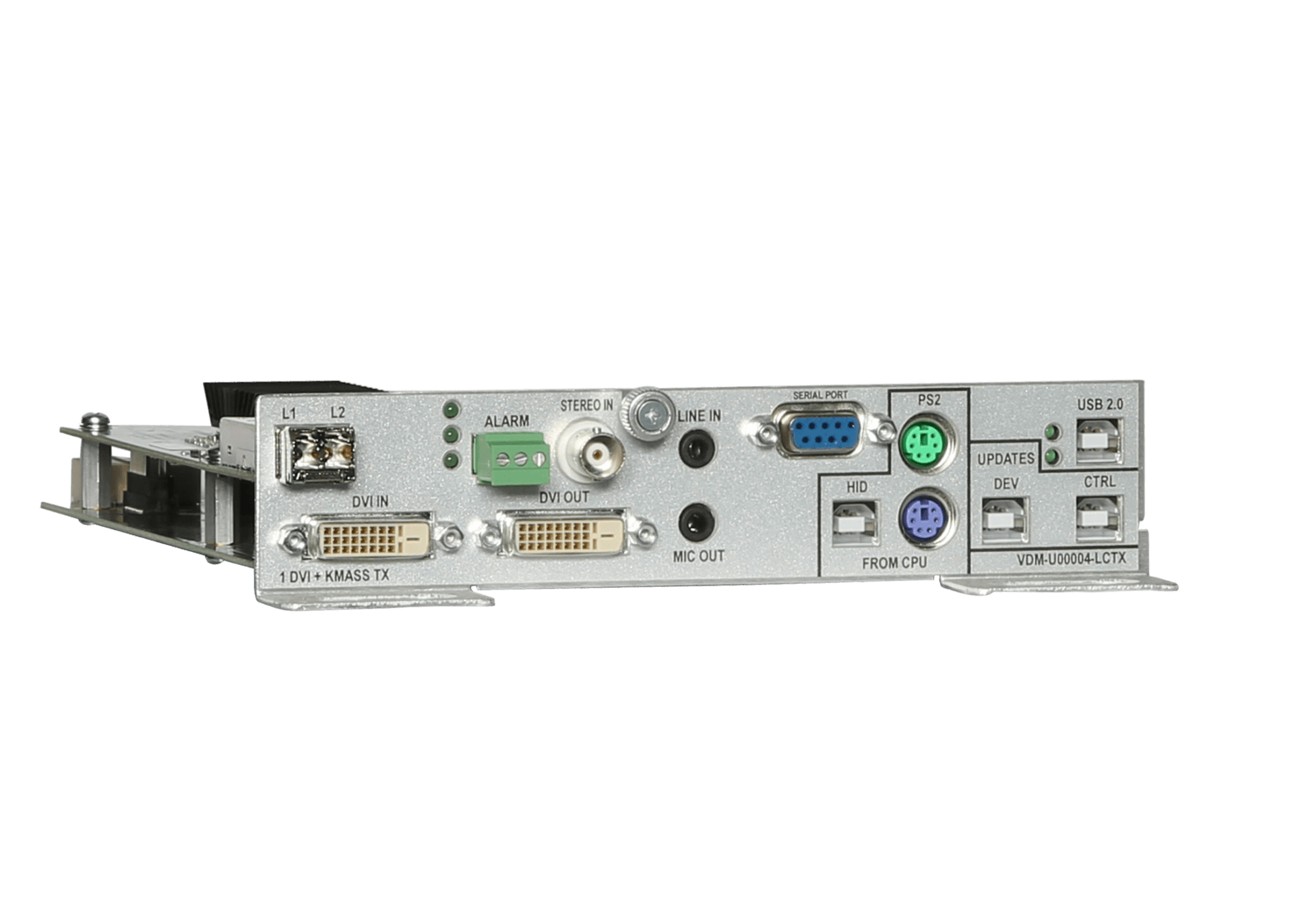

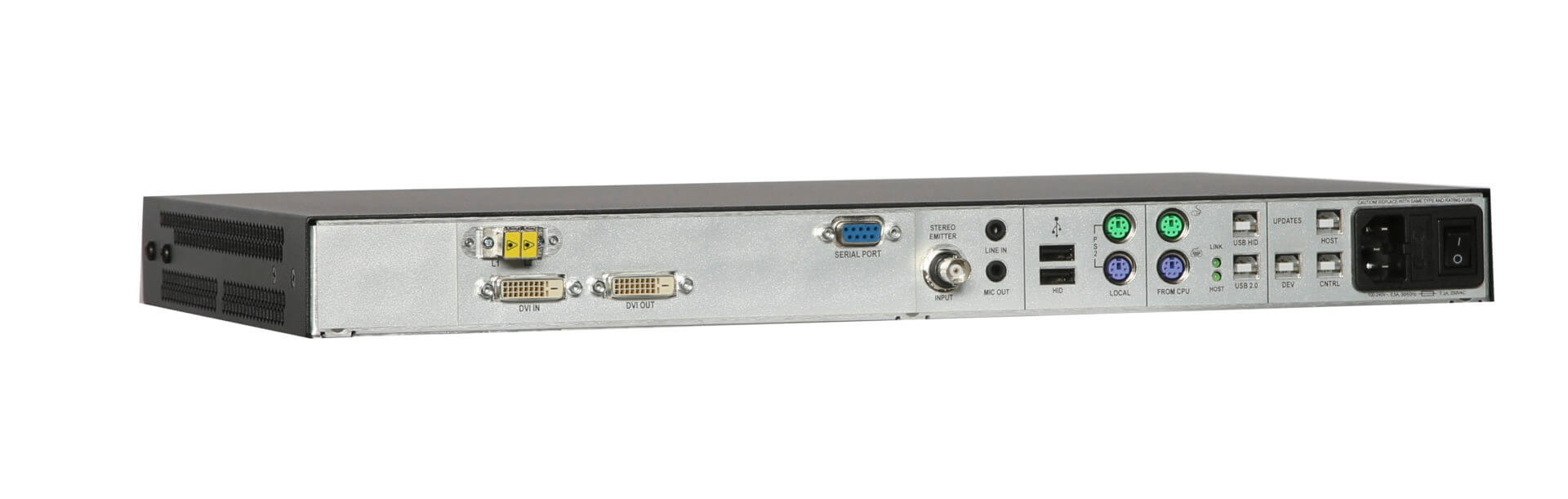

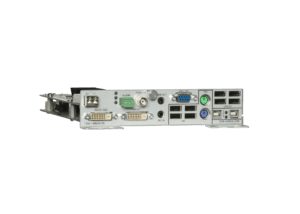

Connectors

  • Video: DVI-D (2) DVI-D (2)
  • Audio MIC/LINE: 3.5mm Jack (2) 3.5mm Jack (2)
  • RS-232 Serial Port: TX: DB9 Female (1); RX: DB9 Male (1) TX: DB9 Female (1); RX: DB9 Male (1)
  • RS-422 Serial Port (Configurable): DB9 Female (1) DB9 Female (1)
  • Stereo Emitter: 50Ω BNC (1) 50Ω BNC (1)
  • PS/2 Keyboard/Mouse: Mini DIN 6 Female (2) Mini DIN 6 Female (2) + additional (2, TX only) for Local Keyboard/Mouse
  • USB Local Keyboard/Mouse: TX: USB A (2)
  • USB HID: TX: USB B (1); RX: USB A (4) TX: USB B (1); RX: USB A (4)
  • USB 2.0 (480 Mbps, Configurable): TX: USB B (1); RX: USB A (4) TX: USB B (1); RX: USB A (4)
  • FireWire 800 (Configurable): 9-Pin Male IEEE 1394b (1)
  • Professional Audio (Configurable): AES3 (TRS), S/PDIF (RCA) or S/PDIF (TOSLINK) (1)
  • 10/100 Network (Configurable): RJ45 (1)
  • Software Updates: USB B (2) TX: USB B (3); RX: USB B (2)
  • Alarm Closed contact alarm, three position terminal block
  • Fiber Connectors: LC (1) LC, SC or ST (1) [FireWire 800 (2)]

Cables Included

Transmitter:

  • (1) AC Power Cable for Fixed Extenders (for Extender Modules see Modular Chassis Specifications)
  • (1) DVI-D Single-Link Male to Male, 2 Meters (CBL000009-002MR)
  • (1) KMASS Cable Kit (KIT-000005-R)
  • (2) 6 Pin Mini DIN Male to Male, 1.8 Meters (CBL000006-006FR) (1) DB9 Male to DB9 Female, 1.8 Meters (CBL000017-006FR)
  • (1) BNC Male to BNC Male, 50Ω, 1.8 Meters (CBL000018-006FR) (2) USB A-B, 1.8 Meters (CBL000015-006FR)
  • (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)
  • USB 2.0 (480 Mbps): (1) USB A-B, 1.8 Meters (CBL000015-006FR) 10/100 Network: (1) CAT 5, 2 Meters (CBL000001-002MR)
  • FireWire 800: (1) 9-Pin to 9-Pin 1394b, 1.8 Meters (CBL000101-006FR) & (1) 6-Pin to 9-Pin 1394b, 1.8 Meters (CBL000100-006FR)
  • Professional Audio: (1) Optical TOSLINK, 1.8 Meters (CBL-000043-R), (1) Coaxial RCA, 1.8 Meters (CBL-000044-R)

Receiver:

  • (1) AC Power Cable (For Fixed Extenders, for Extender Modules see Modular Chassis Specifications)
  • FireWire 800: (1) 9-Pin to 9-Pin 1394b, 1.8 Meters (CBL000101-006FR) & (1) 6-Pin to 9-Pin 1394b, 1.8 Meters (CBL000100-006FR)

How To Buy

Part Numbers

VEL-H00M04-LCTX Velocity 4 Transmitter, Single Head Single-Link DVI, HID, KMASS, Multi-Mode, LC
VEL-H00M04-LCRX Velocity 4 Receiver, Single Head Single-Link DVI, HID, KMASS, Multi-Mode, LC
VEL-HR0M04-LCTX Velocity 4 Transmitter, Single Head Single-Link DVI, HID, KMASS, Redundant Optics, Multi-Mode, LC
VEL-HR0M04-LCRX Velocity 4 Receiver, Single Head Single-Link DVI, HID, KMASS, Redundant Optics, Multi-Mode, LC
VEL-W00M04-LCTX Velocity 4 Transmitter, Single Head Single-Link DVI, HID, USB 2.0, KMASS, Multi-Mode, LC
VEL-W00M04-LCRX Velocity 4 Receiver, Single Head Single-Link DVI, HID, USB 2.0, KMASS, Multi-Mode, LC
VEL-WR0M04-LCTX Velocity 4 Transmitter, Single Head Single-Link DVI, HID, USB 2.0, KMASS, Redundant, Multi-Mode, LC
VEL-WR0M04-LCRX Velocity 4 Receiver, Single Head Single-Link DVI, HID, USB 2.0, KMASS, Redundant, Multi-Mode, LC
VTM-H00004-LCTX Velocity T-Series 4 Transmitter Module, Single Head Single-Link DVI, HID, KMASS, Multi-Mode, LC
VTM-H00004-LCRX Velocity T-Series 4 Receiver Module, Single Head Single-Link DVI, HID, KMASS, Multi-Mode, LC
VTM-U00004-LCTX Velocity T-Series 4 Transmitter Module, Single Head Single-Link DVI, HID, USB 2.0, KMASS, MMode, LC
VTM-U00004-LCRX Velocity T-Series 4 Receiver Module, Single Head Single-Link DVI, HID, USB 2.0, KMASS, MMode, LC
Each Extender Module requires a Modular Chassis; for further information, see Modular Chassis Specifications.
VED-000001 Velocity Desktop Chassis ∙ Configurable with a single Desktop Module
VTS-004200 Velocity T-Series 4200 Chassis ∙ Configurable with up to two T-Series Modules
VCS-004200 Velocity Compact T-Series 4200 Chassis ∙ Configurable with up to two Compact T-Series Modules
VTS-Q04200 Velocity T-Series Q-4200 Chassis ∙ Configurable with a single T-Series Module & two Q-Series Modules

Request a Quote
