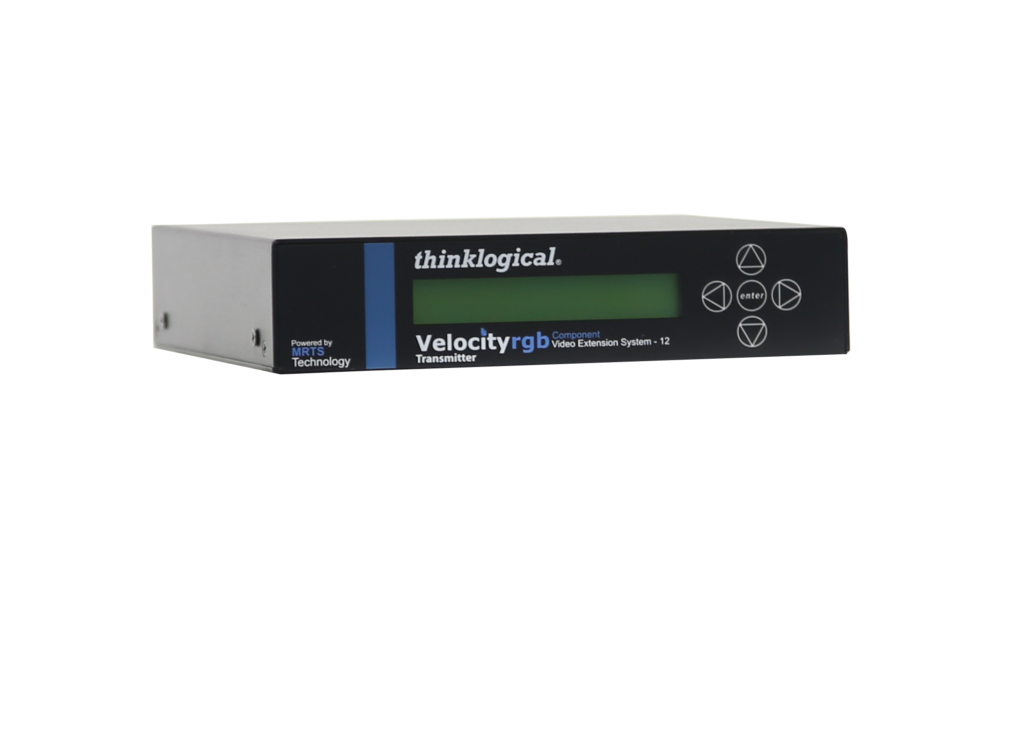

Velocity 12 Video Extension

  • Supports RGB video resolutions
  • Supports 480p, 720p, and 1080i component video
  • MRTS technology 6.25 Gbps allows for full frame rate transmission of uncompressed video
  • Signal transmission via fiber optic cable; no RF interference
  • Requires one or two fiber optic cables depending on application
  • Flawless image quality with no frame dropping
  • Extends video signals up to:
    • 750 meters using OM3+ multi-mode fiber
    • 1000 meters using OM4+ multi-mode fiber
    • 40 kilometers using single-mode fiber
  • Local RGB/component output
  • Audio and serial port for A/V applications
  • DDC2B/EDID compliant
  • Simple plug and play
  • Class 1 laser product
  • Available with SC-, ST-, or LC-type fiber connectors
  • Compatible with all Thinklogical Velocitydvi  fiber video receivers





Overview

The Velocityrgb System-12 is designed to support one RGB display, full duplex stereo audio, and serial (RS-232). Using
multi-mode or single-mode fiber, the system allows users to locate an analog monitor/projector via fiber from just a few
meters up to 40 kilometers away from the controlling computer securely without the loss of resolution. In addition to this
standout capability and performance, the Velocityrgb System-12 supports 480p, 720p, and 1080i component video.

Specifications

Video Resolution RGB: Up to 1600 x 1200 @ 60Hz, 1920 x 1080 @ 60Hz component video: 480p, 720p, and 1080i @ 60Hz

Supply Voltage +5.0V DC

DC Adapter AC/DC adapter universal input 90-264 VAC (supplied)

Operating Temperature 0°-50°C (32°-122°F)

Humidity 5-95% RH, Non-Condensing

Dimensions and Weights

Height: 1.19 inches (3.016 cm)

Depth: 10 inches (25.4 cm)

Width: 6.49 inches (16.5 cm)

Weight: <1 lb (0.45 kg) each

(Tolerance: ± .039 inches; .100 cm)

Shipping Weight: 4 lbs (1.81 kg) (one Velocityrgb System-12 transmitter and one Velocity receiver)

Optical Cable single-mode over one or two fibers multi-mode over one or two fibers (fiber is available, not supplied)

Optical Distance

up to 65 meters with type OM1

up to 350 meters with type OM2

up to 1000 meters with type OM4

up to 40 kilometers with type OS2 (single-mode)

Power Consumption 10 watts per unit

DC Adapter AC/DC adapter universal input 90-264 VAC (supplied)

Compliance approvals for US, Canada, and European Union

Warranty 12 months from date of shipment; extended warranties available

How To Buy

Part Numbers

SINGLE-MODE
VEL-AV0M12-LCTX Velocity 12 RGB Video Extender Transmitter, Single Link RGB, Video Component, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, LC
VEL-AV0M12-SCTX Velocity 12 RGB Video Extender Transmitter, Single Link RGB, Video Component, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, SC
VEL-AV0M12-STTX Velocity 12 RGB Video Extender Transmitter, Single Link RGB, Video Component, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, ST
OPTICS OPTIONS for SINGLE-MODE
VOP-S05 Velocity 12 Optics Option for Transmitter, Single Mode, Dual Fiber, 10KM, SC/UPC or ST/UPC
VOP-S11 Velocity 12 Optics Option for Transmitter, Single Mode, Dual Fiber, 10KM, LC/UPC
MULTI-MODE
VEL-AV0M12-LCTX LCTX Velocity 12 RGB Video Extender Transmitter, Single Link RGB, Video Component, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, LC
VEL-AV0M12-SCTX Velocity 12 RGB Video Extender Transmitter, Single Link RGB, Video Component, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, SC
VEL-AV0M12-STTX Velocity 12 RGB Video Extender Transmitter, Single Link RGB, Video Component, Local Display, Local VGA Port, Serial, Audio, Multi-Mode, ST
OPTICS OPTIONS for MULTI-MODE
VOP-M01 Velocity 12 Optics Option for Transmitter, Multi-Mode, Dual Fiber, 50M or 350M or 1000M, SC or ST
VOP-M04 VOP-M04 Velocity 12 Optics Option for Transmitter, Multi-Mode, Dual Fiber, 50M or 350M or 1000M, LC
Cables
(Qty 2) CBL000016-006FR 3.5MM TO 3.5MM PLUG M/M, 6FT
(Qty 1) CBL000017-006FR DB9M TO DB9F CABLE, 6FT
(Qty 1) CBL000020-002MR HD15M TO HD15M CABLE, 2M
