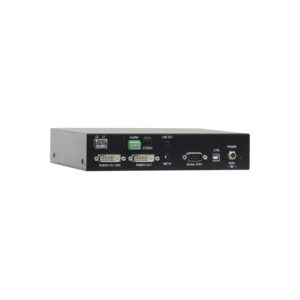

Velocity 10 Video Extension

Standard

  • Single Head
  • RGB/DVI
  • TX Local RX Aux
  • RS-232
  • Analog Audio
  • Fiber Connectors

Overview

The VelocityRGB/DVI 10 extension systems are designed to support one analog or single-link DVI display, as well as full duplex stereo audio and serial (RS-232).

Specifications

  • Video Resolution: DVI-I, all single-link DVI & many common PC analog resolutions (maximum 165MHz pixel clock), Supported analog formats: RGBHV, RGsB, RGBS
  • Optical Cable: Two (2) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
  • Optical Distance: Multi-Mode up to 1000m 65m: OM1 (62.5/125); 350m: OM2 (50/125); 750m: OM3 (50/125 SX+); 1000m: OM4 (50/125eSX+)
  • Optical Distance: Single Mode up to 80km All Distances: OS2 (9/125)
  • Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
  • Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
  • Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
  • Compliance: Approvals for United States of America, Canada, and European Union
  • Warranty: One year ∙ Extended warranties available for purchase
  • Mounting Brackets (VQM): See Modular Chassis Specifications
  • Mounting Brackets (VEL): Surface Mounting Brackets Included
  • Power Consumption: 10 Watts
  • Supply Voltage (VQM): Universal AC Power Supply, 100-240VAC, 47-63Hz
  • Supply Voltage (VEL): +5V DC, 4A, AC/DC Adapter Universal Input 100-240VAC, 50/60Hz
  • Weight (VQM): 0.50lb (0.23kg)
  • Weight (VEL): 1.00lb (0.45kg)

Dimensions

  • Rack Size (VQM): See Modular Chassis Specifications
  • Rack Size (VEL): Contact Thinklogical
  • Height x Width x Depth (VQM): 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm)
  • Height x Width x Depth (VEL): 1.72”(43.74mm) x 8.78”(222.91mm) w/mounting brackets x 9.20”(233.55mm)
  • Tolerance: ± 0.039” (1.00mm)

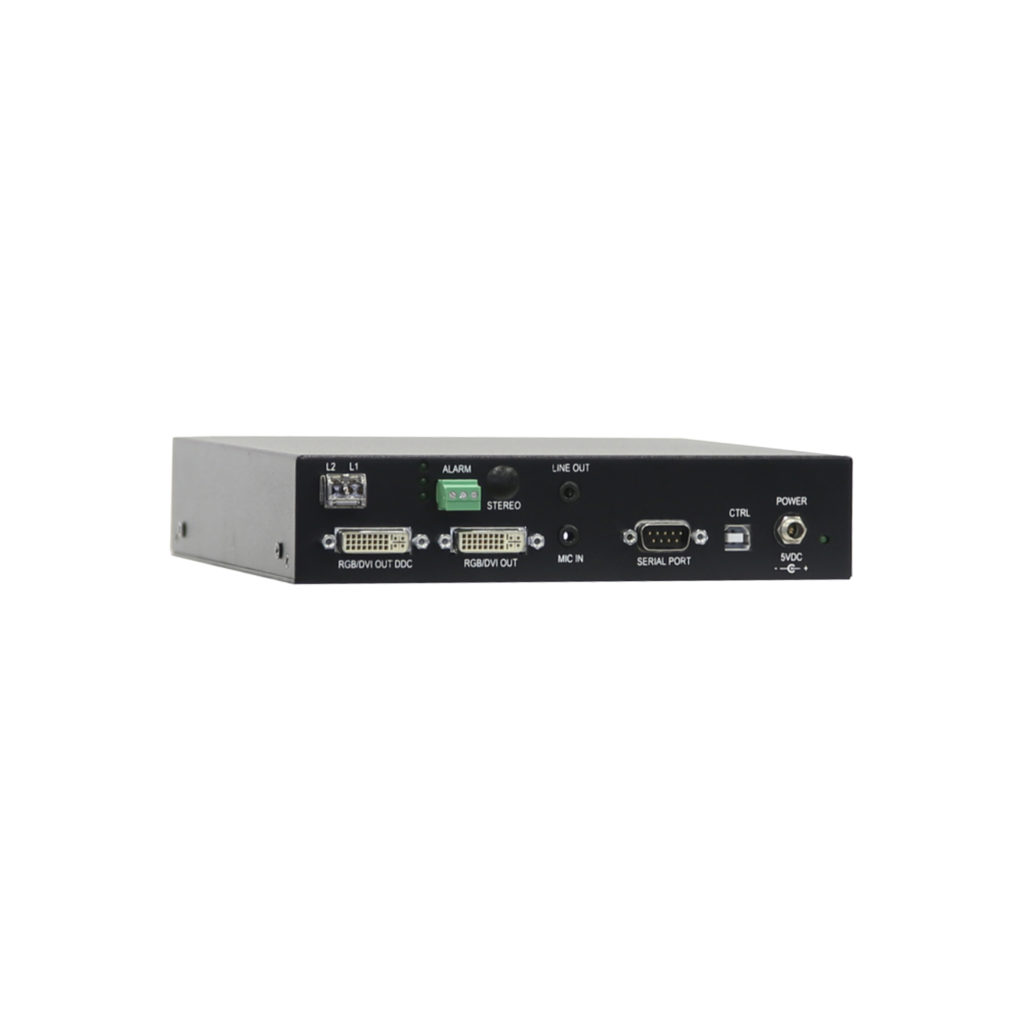

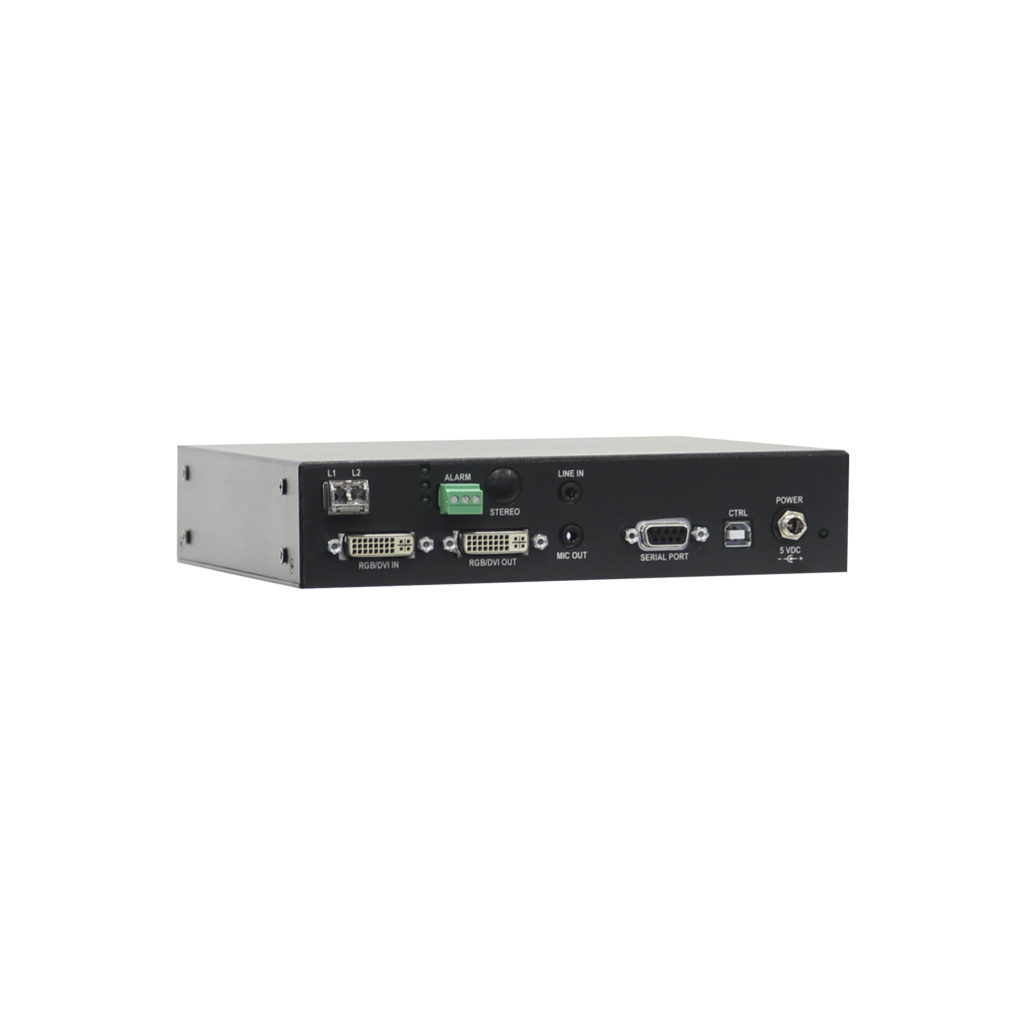

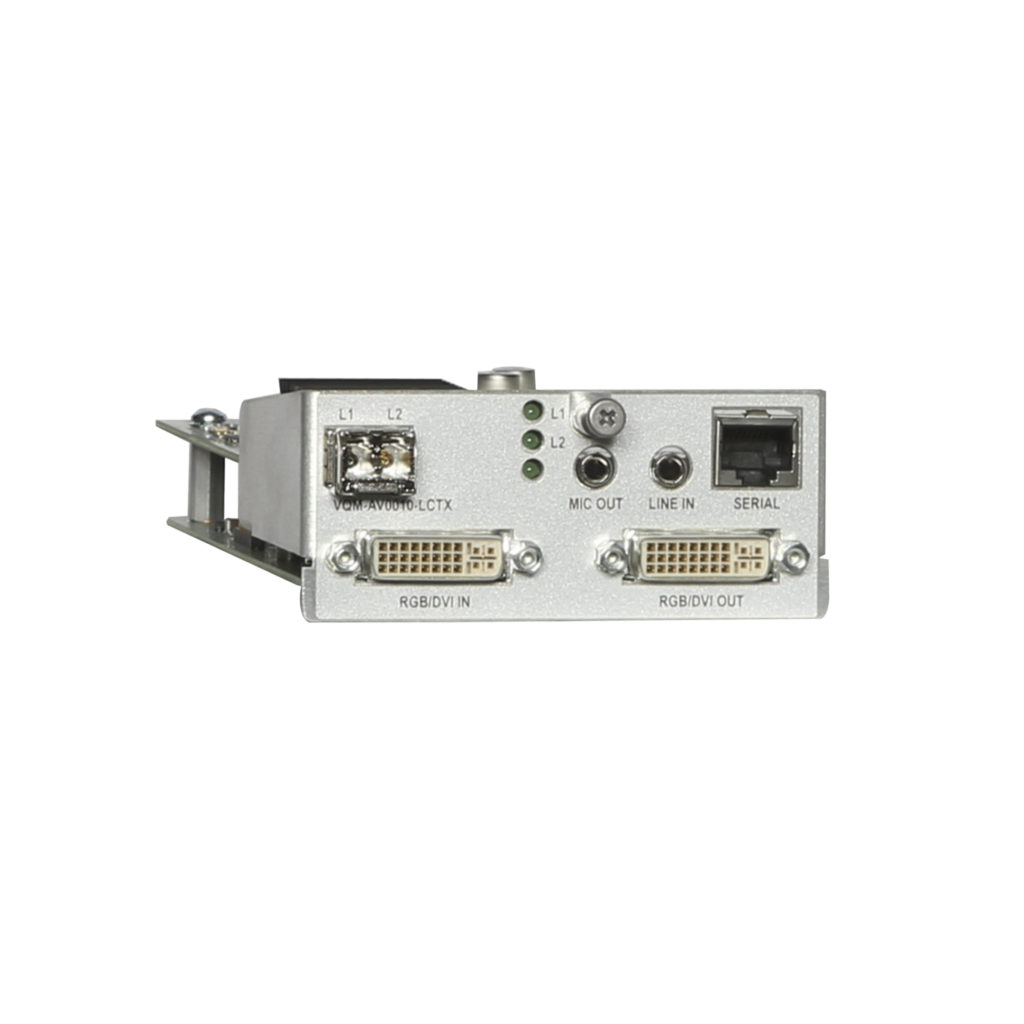

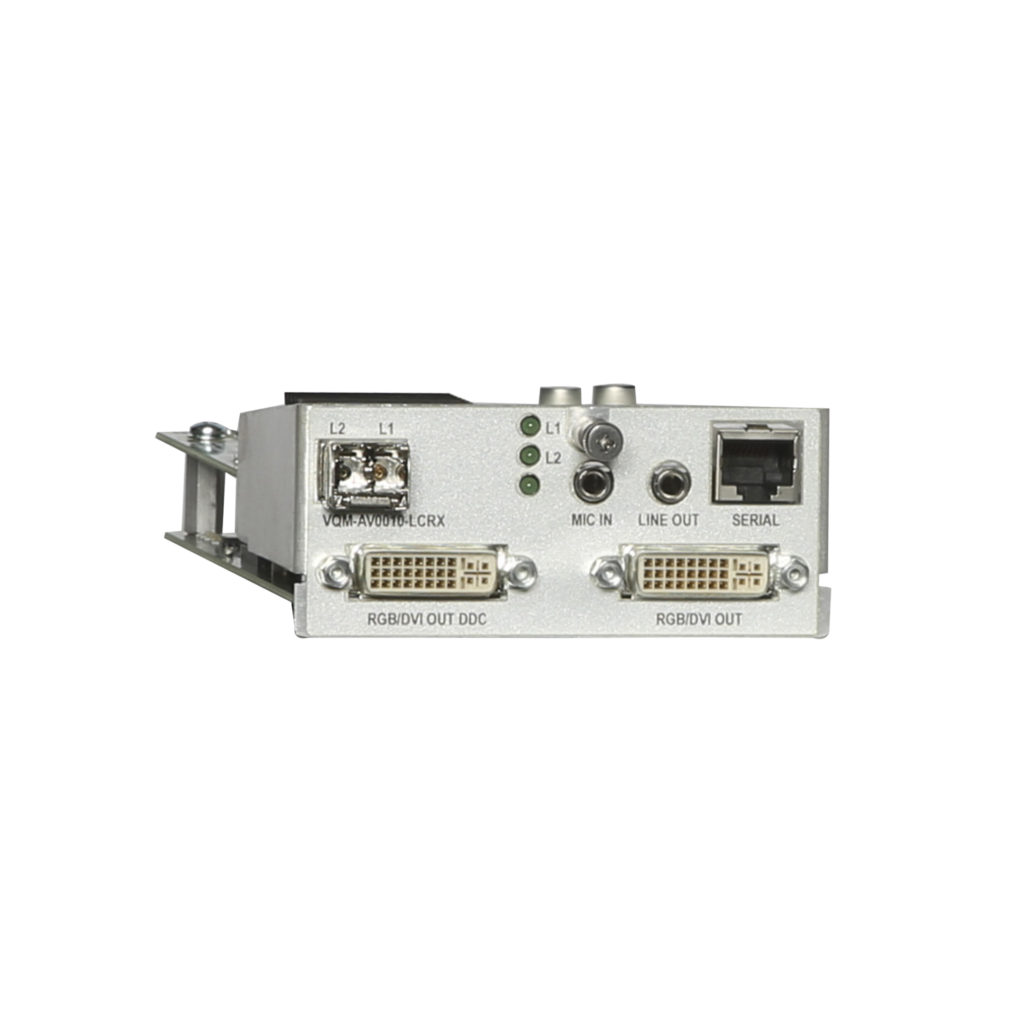

Connectors

  • Video: DVI-I (2)
  • Audio MIC/LINE (Configurable): 3.5mm Jack (2)
  • RS-232 Serial Port (Configurable) (VQM): RJ45 (1)
  • RS-232 Serial Port (Configurable) (VEL): TX: DB9 Female (1); RX: DB9 Male (1)
  • Software Updates (VQM): USB B (1) with Q-Series 2300, 4300 and T-Series Q-4200 Chassis
  • Software Updates (VEL): Mini USB (1)
  • Fiber Connectors: LC (1)

Cables Included

Transmitter:

  • (1) DVI-I Single-Link Male to Male, 2 Meters (CBL000013-002MR); (2) 3.5mm Male to 3.5mm Male Plug, 1.8 Meters (CBL000016-006FR)
  • (1) DVI to VGA Male to Male, 2 Meters (CBL000022-002MR)
  • Fixed Extender Only: (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R); (1) DB9 Male to DB9 Female, 1.8 Meters (CBL000017-006FR)
  • Modular Extender Only: (1) CAT 5, 2 Meters (CBL000001-002MR); (1) DB9 Female RJ45 Modem (ADP-000025-R)

Receiver:

  • Fixed Extender Only: (1) 5 Volt, 4 Amp Wall Mount (PWR-000022-R)
  • Modular Extender Only: (1) CAT 5, 2 Meters (CBL000001-002MR); (1) DB9 Male RJ45 Modem (ADP-000019-R)

Contact Thinklogical for additional specifications for redundant, separate data, separate audio and multipath extenders.
