USB 3.0

Standard

  • USB 3.0
  • Fiber Connectors

Overview

The Velocity USB 3.0 extension systems are designed to support one USB 3.0 input (5Gbps) and two USB 3.0 outputs. As a limit of the USB 3.0 technology, 3.0 devices may only be extended up to a maximum of 100m. Please verify your device with Thinklogical for distance limitations. USB 3.0 is not backward compatible with USB 1.1 or USB 2.0.

Specifications

  • Optical Cable: Two (2) multi-mode or single mode fiber optic cables, for fewer fibers contact Thinklogical (fiber not supplied, available for purchase)
  • Optical Distance: Multi-Mode up to 100m 65m: OM1 (62.5/125); 100m: OM2 (50/125), OM3 (50/125 SX+), OM4 (50/125eSX+)
  • Optical Distance: Single Mode up to 100m All Distances: OS2 (9/125)
  • Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
  • Data Rate: Forward channel: 6.25Gbps; Back Channel: 2Gbps
  • Environmental: Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
  • Compliance: Approvals for United States of America, Canada, and European Union
  • Warranty: One year ∙ Extended warranties available for purchase
  • Mounting Brackets: See Modular Chassis Specifications
  • Power Consumption: 10 Watts
  • Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz
  • Weight: 0.50lb (0.23kg)

Dimensions

  • Rack Size: See Modular Chassis Specifications
  • Height x Width x Depth: 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm)
  • Tolerance: ± 0.039” (1.00mm)

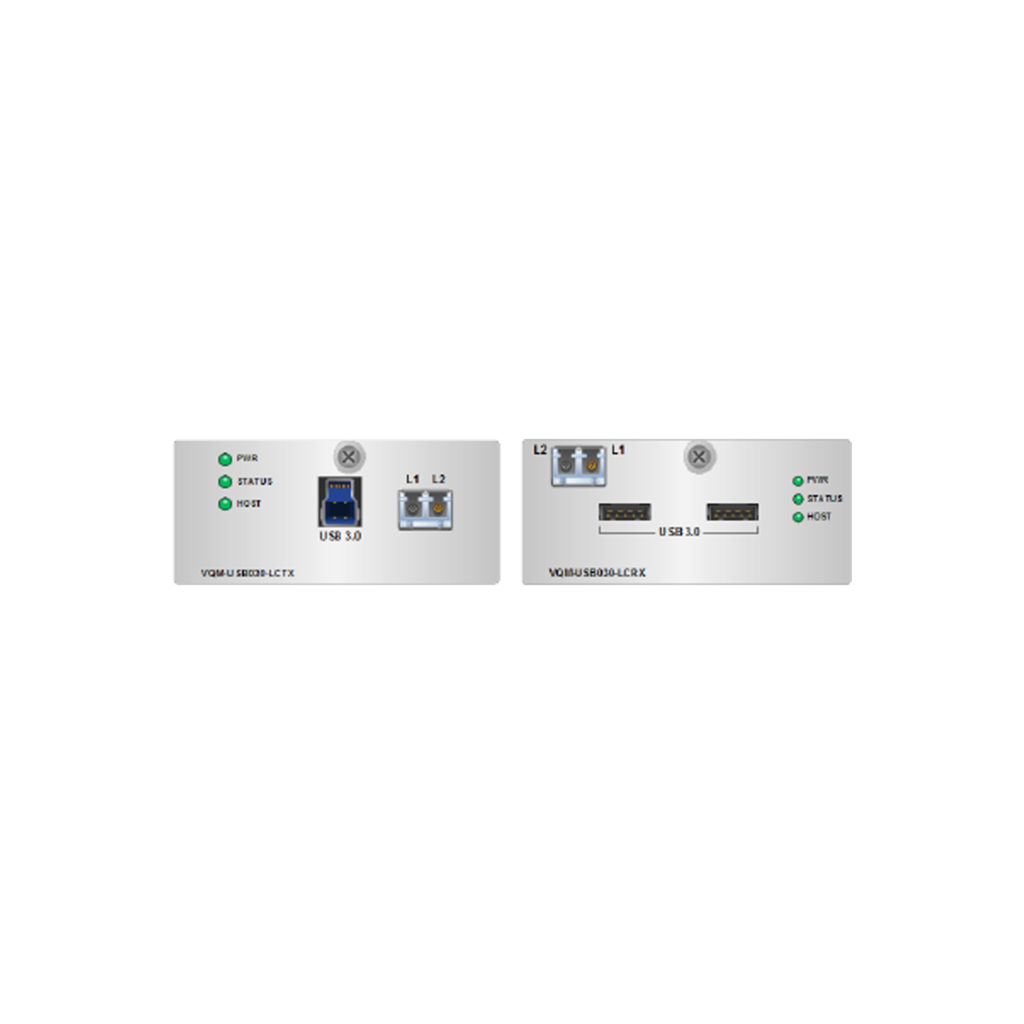

Connectors

  • USB 3.0: TX: USB B (1); RX: USB A (2)
  • Fiber Connectors: LC (1)

Cables Included
Transmitter:

  • (1) Power Cable [See Modular Chassis Specifications]
  • (1) USB 3.0 A-B, 2 Meters

Receiver:

  • (1) Power Cable [See Modular Chassis Specifications]

Contact Thinklogical for additional specifications.

, non-condensing
Compliance: Approvals for United States of America, Canada, and European Union
Warranty: One year ∙ Extended warranties available for purchase
Mounting Brackets: See Modular Chassis Specifications
Power Consumption: 10 Watts
Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz
Weight: 0.50lb (0.23kg)
Dimensions

Rack Size: See Modular Chassis Specifications
Height x Width x Depth: 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm)
Tolerance: ± 0.039” (1.00mm)
Connectors

USB 3.0: TX: USB B (1); RX: USB A (2)
Fiber Connectors: LC (1)
Cables Included
Transmitter:

(1) Power Cable [See Modular Chassis Specifications]
(1) USB 3.0 A-B, 2 Meters
Receiver:

(1) Power Cable [See Modular Chassis Specifications]
Contact Thinklogical for additional specifications.

Resources

Data Sheet

How To Buy

Part Numbers

VQS-001300 Q-1300 Chassis Supports a single Q-Series Module
VQS-002300 Q-2300 Chassis Supports up to two Q-Series Modules
VQS-004300 Q-4300 Chassis Supports up to four Q-Series Modules
VTS-Q04200 Q-4200 Chassis Supports up to two Q-Series Modules and a single T-Series Module
