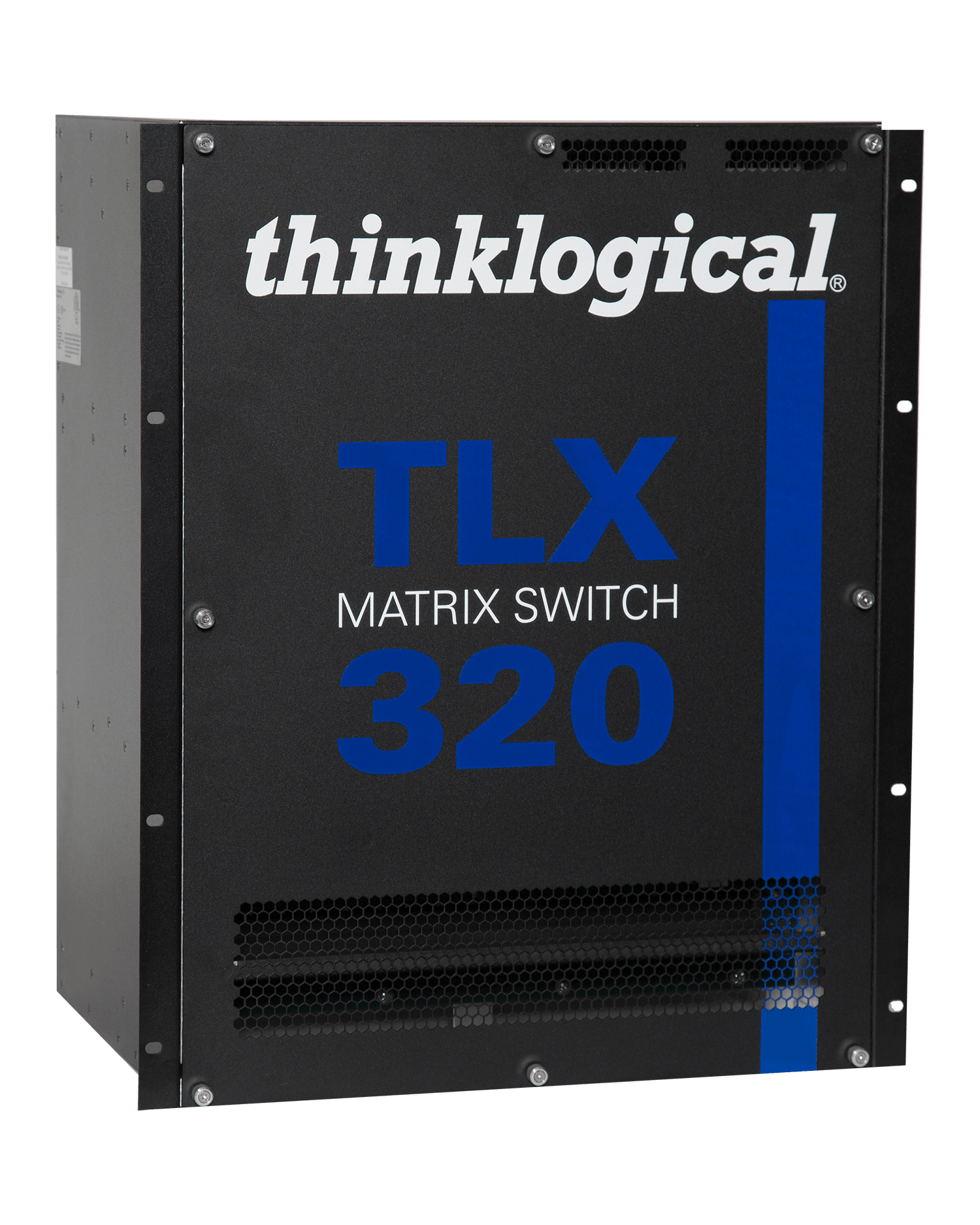

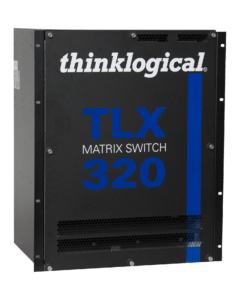

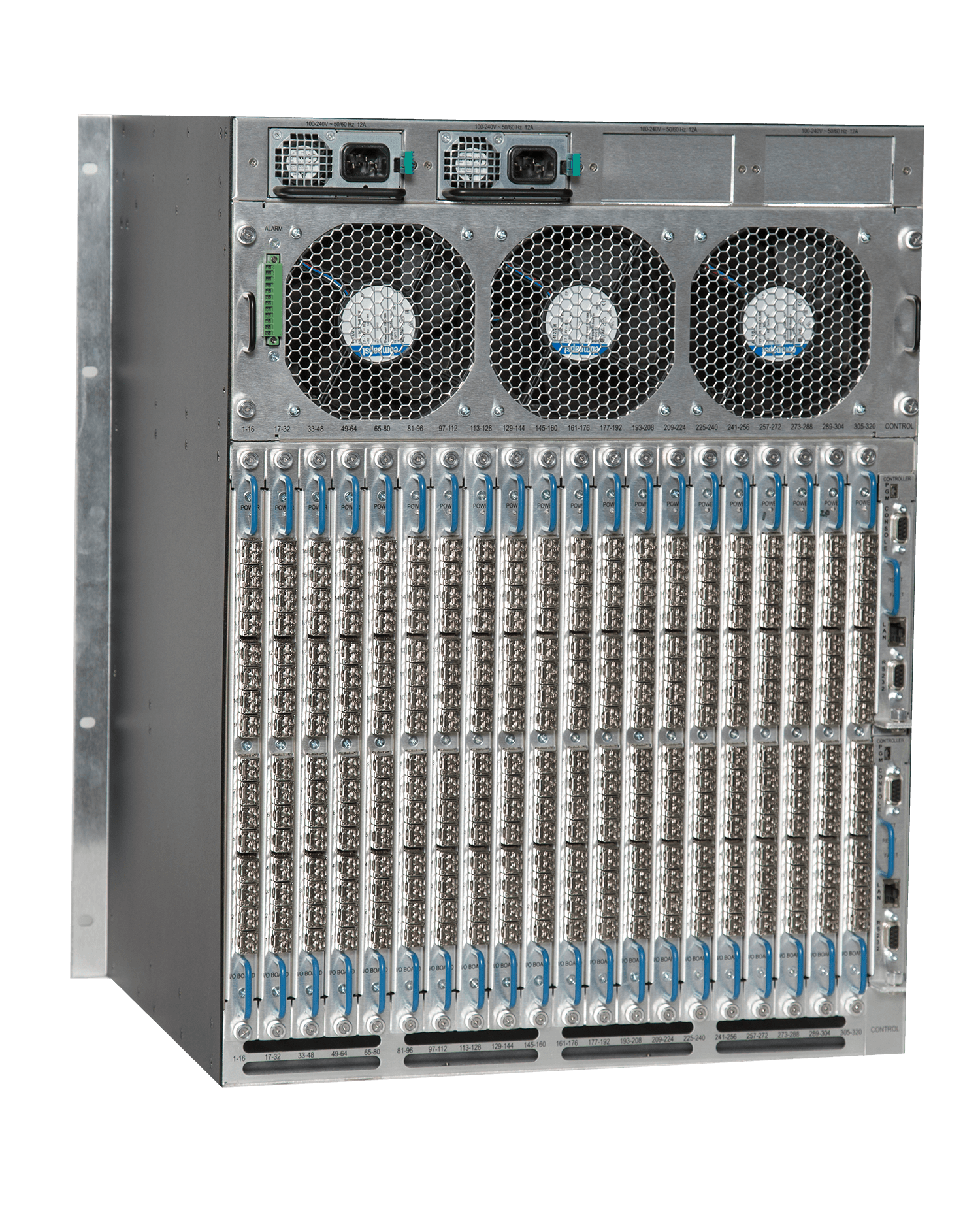

TLX320 Matrix Switch

320 Port 10G KVM, Video, HDMI, DisplayPort, USB, Audio Matrix Switch

  • Multi-mode fiber, single mode fiber, CATx and hybrid configurations
  • Non-blocking and protocol agnostic
  • Scalable from 16 to 320 ports
  • 10Gbps bandwidth per port
  • Supports video resolutions up to 4K DCI (4096×2160) 60Hz 4:4:4, 30 bits per pixel
  • Access sources up to 80 kilometers away, with no performance degradation
  • Partitioned and restricted switching
  • Hot-swap all critical system components to maximize system uptime
  • Redundant power supplies and control cards with automatic failover
  • Enhanced diagnostics and alarms provide extensive real-time monitoring and diagnostics of critical functions of the switch
  • Information Assurance (IA) accredited for use in secure, multi-classification environments: Common Criteria EAL4, NATO NIAPC Evaluation Scheme: GREEN, TEMPEST SDIP 27 Level B and the U.S. DoD DISA JITC UC APL.

Overview

TLX Matrix Switches are high performance, modular, non-blocking switches for complete, end-to-end switching of video, audio and peripheral signals over multi-mode or single mode fiber optic cable or CATx cable. TLX switches are protocol agnostic, supporting numerous video, audio and peripheral signals, allowing users to consolidate all of their system switching requirements in a single chassis.

The TLX320 is ideal for larger system applications, scalable from 16 ports up to 320 ports. Each port supports 10Gbps bandwidth, preserving signal integrity to provide uncompressed, high resolution video with no artifacts, no added latency or lost frames. Thinklogical’s re-clocking technology ensures that every video and data stream is delivered in perfect synchronization.

KVM Switch, Matrix Switch, Fiber Switch, Video Switch, Audio Switch, CATx Switch, 10G Switch, 4K Switch, HDMI Switch, DisplayPort Switch, SDI Switch, USB Switch, EAL4 Switch, DISA JITC Switch, TEMPEST Switch, Secure KVM.

Information Assurance (IA) accredited for use in secure, multi-classification environments: Common Criteria EAL4, NATO NIAPC Evaluation Scheme: GREEN, TEMPEST SDIP 27 Level B and the U.S. DoD DISA JITC UC APL.

Specifications

  • Rack size: EIA 19” (482.6mm)
  • Height: 13 RU-22.75”(578mm)
  • Depth: 15.32” (389mm)
  • Width: 17.49” (437mm)
  • Tolerance:± .039” (.991mm)
  • Weight: 78lb (35.38kg)
  • Shipping weight: 100lb (45.36kg)
  • Ports: 16×16 min/320×320 max
  • Alarm Relay Contacts: Max DC: 1A at 30VDC; Maz AC: 0.3A at 125VAC; Contact resistance max: 100mΩ
  • Operating Temp: 0° to 50°C (32° to 122°F)
  • Humidity: 5 to 95% RH, non-condensing
  • Power Requirements: AC Input: 100-240VAC, 47-63Hz; Universal power supply
  • Power Consumption: ~850 watts, fully loaded
  • Compliance: Approvals for US, Canada and European Union
  • Warranty: One year from date of shipment. Extended warranties available

Resources

Data Sheet

How To Buy

Part Numbers

TLX-MSC-000320 TLX 320 Matrix Switch Chassis, Configurable with up to Twenty (20) Data Input/Output Cards
TLX-MSD-M00016 TLX 320 Matrix Switch Data Input/Output Card, 16 Multi-Mode Fiber Ports
TLX-MSD-S00016 TLX 320 Matrix Switch Data Input/Output Card, 16 Single Mode Fiber Ports, 10km
TLX-MSD-000016 TLX 320 Matrix Switch Data Input/Output Card, Unpopulated for use with up to 16 Multi-Mode or Single Mode SFP+
TLX-MSD-C00016 TLX 320 Matrix Switch Data Input/Output Card, 16 CATx Ports
TLX-MSM-C00320 TLX 320 Matrix Switch Controller Card
TLX-MSM-F00320 TLX 320 Matrix Switch Fan
TLX-MSM-P00320 TLX 320 Matrix Switch Power Supply
