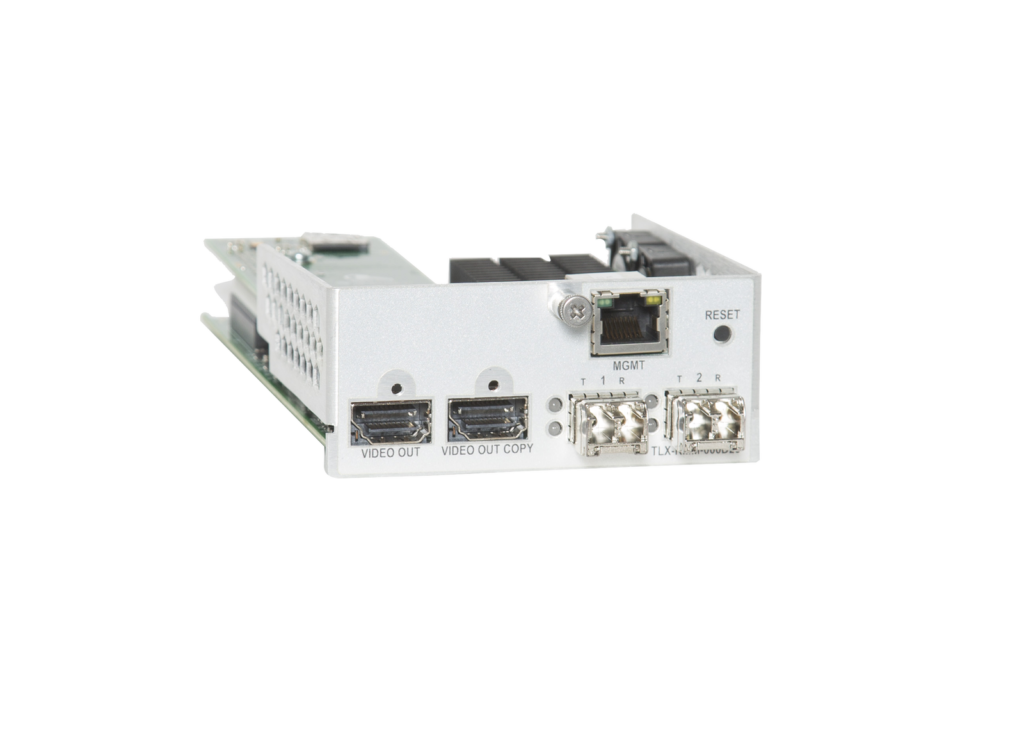

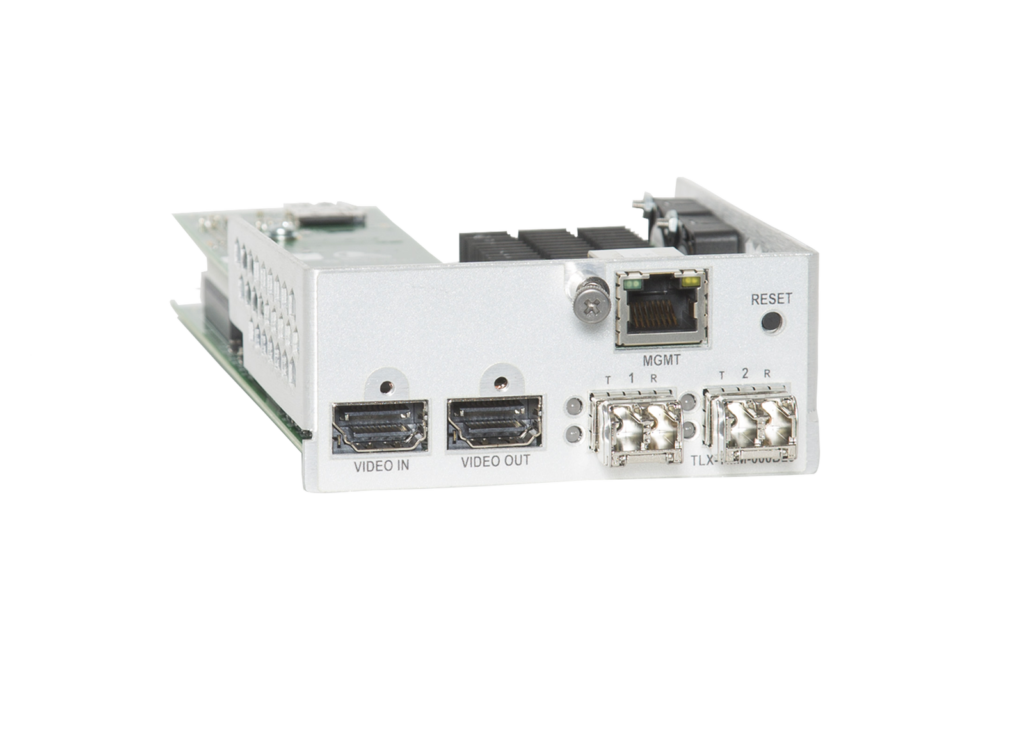

TLX20 Video Extender
10G Fiber Optic Video, HDMI, DisplayPort, USB, Audio Extender. TLX systems offer support for:
Video Signals
- DisplayPort 1.2 up to 4096×2160 @ 60Hz
- D-Series: HDMI 1.4 up to 3840×2160 @ 30Hz
- E-Series: HDMI 2.0 up to 3840×2160 @ 60Hz with HDR
Audio Signals
- Bidirectional unbalanced analog stereo audio
- Embedded audio, with the ability to
- de-embed on the Receiver
Peripheral Signals
- DDC
- Serial (RS-232)
- 10/100 Network
- USB HID
- USB 2.0 (480Mbps)
Certified to TEMPEST SDIP 27 Level B
Overview
The TLX20 extension systems are designed to support a single DisplayPort 1.2 display up to 4096×2160 at 60Hz or a single HDMI 1.4 or 2.0 display to the maximum specification (3840×2160 at 30Hz), including support for HDCP content. An additional video output is provided for a local display. Extenders are custom configurable to also support full duplex stereo audio and embedded audio, with the ability to de-embed audio at the receiver. Extenders configured with duplex stereo audio may also be configured to include either Serial RS-232 or 10/100/1000 Network.
Video Extender, Fiber Optic Extender, HDMI Extender, DisplayPort Extender, 4K Extender, Audio Extender, USB 2.0 Extender, USB HID Extender, 10/100 Ethernet Extender, RS-232 Serial Extender, TEMPEST Extender, DISA JITC Extender.
Specifications
| Specifications | TLX Fiber Extender Modules (TLX-TMM/RMM) |
TLX CATx Extenders (TLX-TCF/RCF) |
|
| Video Resolution | DisplayPort up to 4096×2160 @ 60Hz; 4:4:4 color depth; 10-bit color HDMI up to 4096×2160 @ 24Hz or 3840×2160 @ 30Hz; 4:4:4 color depth and 8-bit color or 4:2:2 color depth and 10-bit color |
||
| Cable | Three (3) fiber optic cables, (fiber not supplied, available for purchase) | Two (2) CATx cables (CATx not supplied, available for purchase) | |
| Distance | Multi-Mode up to 400m ∙ 33m: OM1 (62.5/125); 82m: OM2 (50/125); 300m: OM3 (50/125 SX+); 400m: OM4 (50/125eSX+) Single Mode up to 80km ∙ All Distances: OS2 (9/125) |
100m: CAT6a | |
| Optical Wavelength | Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information) | ||
| Data Rate | 10Gbps | ||
| Environmental | Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing | ||
| Compliance | Approvals for United States of America, Canada, and European Union | ||
| Warranty | One year ∙ Extended warranties available for purchase | ||
| Mounting Brackets | Brackets Included, See Modular Chassis Specifications | Surface Mounting Brackets Included | |
| Power Consumption | 20 Watts | 30 Watts | |
| Supply Voltage | Universal AC Power Supply, 100-240VAC, 47-63Hz | Desktop 5VDC | |
| Weight | 0.50lb (0.23kg) | 1.50lb (0.68kg) | |
| Rack Size | See Modular Chassis Specifications | Contact Thinklogical for Rackmount Solution | |
| Height x Width x Depth 1 | 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm) | 1.2” (30.50mm) x 8.86” (225.0mm) x 7.2” (182.9mm) with brackets | |
| Height x Width x Depth | 1.59” (40.42mm) x 3.69” (93.80mm) x 7.25” (184.04mm) | 1.2” (30.50mm) x 8.86” (225.0mm) x 7.2” (182.9mm) with brackets | |
| Tolerance | ± 0.039” (1.00mm) | ± 0.039” (1.00mm) | |
| Video | HDMI 1.4 (2) & DisplayPort 1.2 (2) | HDMI 1.4 (1) & DisplayPort 1.2 (1) | |
| Audio MIC/LINE (Configurable) | 3.5mm Jack (3) | ||
| RS-232 Serial Port (Configurable) | RJ45 (1) | ||
| 10/100/1000 Network (Configurable) | RJ45 (1) | N/A | |
| Software Updates | USB B (1) with CHS-2 & CHS-4; MGMT Port: RJ45 (1) | Mini USB (1); Management Port: RJ45 (1) | |
| Transport Connectors | LC (2) | RJ45 (2) | |
