TLX20 KVM Extender

10G Fiber Optic KVM, Video, HDMI, DisplayPort, USB, Audio Extenders. TLX systems offer support for:

Video Signals

  • DisplayPort 1.2 up to 4096×2160 @ 60Hz
  • D-Series: HDMI 1.4 up to 3840×2160 @ 30Hz
  • E-Series: HDMI 2.0 up to 3840×2160 @ 60Hz with HDR

Audio Signals

  • Bidirectional unbalanced analog stereo audio
  • Embedded audio, with the ability to de-embed on the Receiver

Peripheral Signals

  • DDC ∙ Serial (RS-232)
  • 10/100 Network
  • USB HID
  • USB 2.0 (480Mbps)

Certified to TEMPEST SDIP 27 Level B

Overview

The TLX20 extension systems are designed to support a single DisplayPort 1.2 display up to 4096×2160 at 60Hz or a single HDMI 1.4 or 2.0 display to the maximum specification (3840×2160 at 30Hz), including support for HDCP content. An additional video output is provided, per input, for a local display. Extenders also support full duplex stereo audio, embedded audio (with the ability to de-embed audio at the receiver), Serial RS232, USB HID and are custom configurable to support USB 2.0 (480Mbps).

KVM Extender, Video Extender, Fiber Optic Extender, HDMI Extender, DisplayPort Extender, 4K Extender, Audio Extender, USB 2.0 Extender, USB HID Extender, 10/100 Ethernet Extender, RS-232 Serial Extender, TEMPEST Extender, DISA JITC Extender.



Specifications

Specifications TLX Fiber Extender Modules
(TLX-TMM/RMM)
TLX CATx Extenders
(TLX-TCF/RCF)
Video Resolution DisplayPort up to 4096×2160 @ 60Hz; 4:4:4 color depth; 10-bit color HDMI up to 4096×2160 @ 24Hz or 3840×2160 @ 30Hz; 4:4:4 color depth and 8-bit color or 4:2:2 color depth and 10-bit color
Cable Three (3) fiber optic cables, (fiber not supplied, available for purchase) One (1) CATx cable (CATx not supplied, available for purchase)
Distance Multi-Mode up to 400m ∙ 33m: OM1 (62.5/125); 82m: OM2 (50/125); 300m: OM3 (50/125 SX+); 400m: OM4 (50/125eSX+) Single Mode up to 80km ∙ All Distances: OS2 (9/125) 100m: CAT6a
Optical Wavelength Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information)
Data Rate 10Gbps
Environmental Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing
Compliance Approvals for United States of America, Canada, and European Union
Warranty One year ∙ Extended warranties available for purchase
Mounting Brackets Brackets Included, See Modular Chassis Specifications Surface Mounting Brackets Included
Power Consumption 20 Watts 30 Watts
Supply Voltage Universal AC Power Supply, 100-240VAC, 47-63Hz Desktop 5VDC
Weight 0.50lb (0.23kg) 1.50lb (0.68kg)
Rack Size See Modular Chassis Specifications Contact Thinklogical for Rackmount Solution
Height x Width x Depth 1 1.65” (41.91mm) x 7.41” (188.11mm) x 9.06” (230.15mm) 1.2” (30.50mm) x 8.86” (225.0mm) x 7.2” (182.9mm) with brackets
Tolerance ± 0.039” (1.00mm) ± 0.039” (1.00mm)
Video TX: HDMI 1.4 (2) & DisplayPort 1.2 (2); RX: HDMI 1.4 (2) & DisplayPort 1.2 (1) HDMI 1.4 (1) & DisplayPort 1.2 (1)
Audio MIC/LINE (Configurable) 3.5mm Jack (3)
RS-232 Serial Port (Configurable) RJ45 (1)
USB HID TX: USB B (1); RX: USB A (4) N/A
USB 2.0 (Configurable) TX: USB B (1); RX: USB A (4)
Transport Connectors LC (2) RJ45 (2)

Resources

Data Sheet

How To Buy

Part Numbers

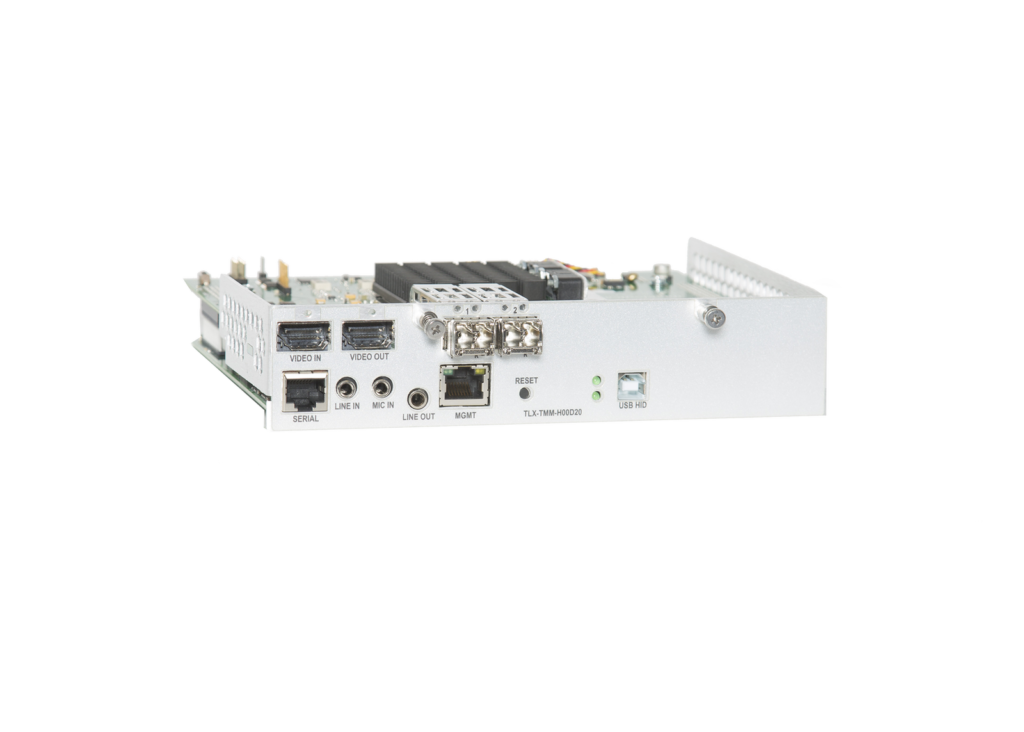

TLX-TMM-H00D20 TLX KVM extender transmitter module; single display up to 4096x2160 @ 60Hz with analog audio, Serial RS-232 and USB HID

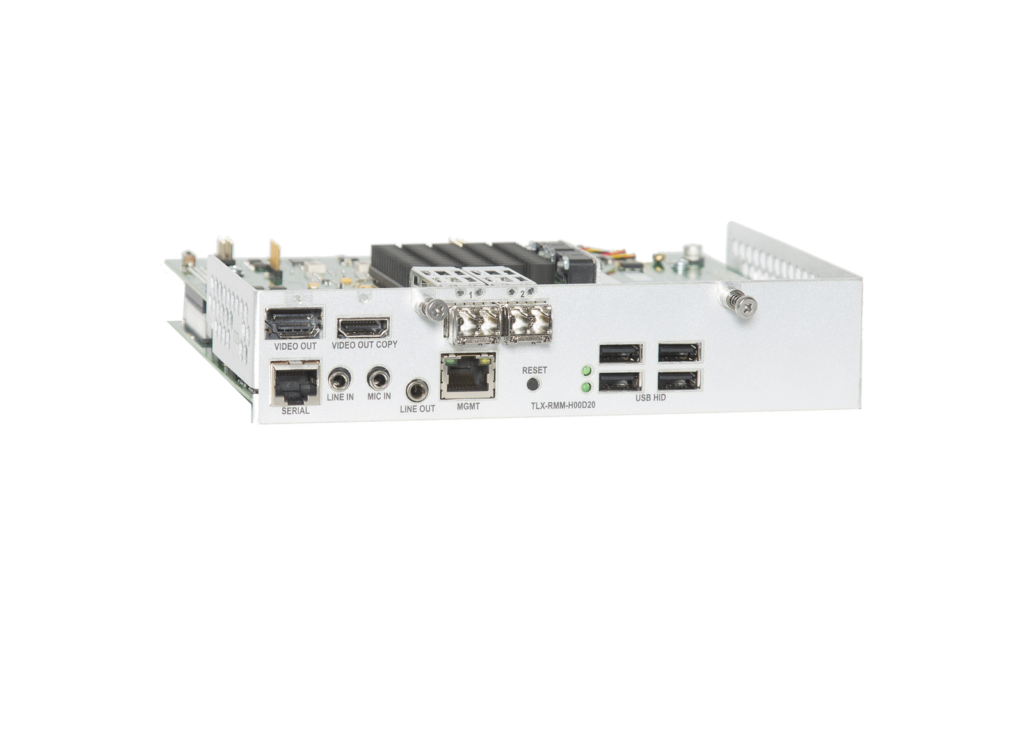

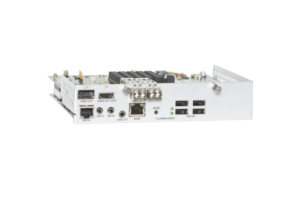

TLX-RMM-H00D20 TLX KVM extender receiver module; single display up to 4096x2160 @ 60Hz with analog audio, Serial RS-232 and USB HID

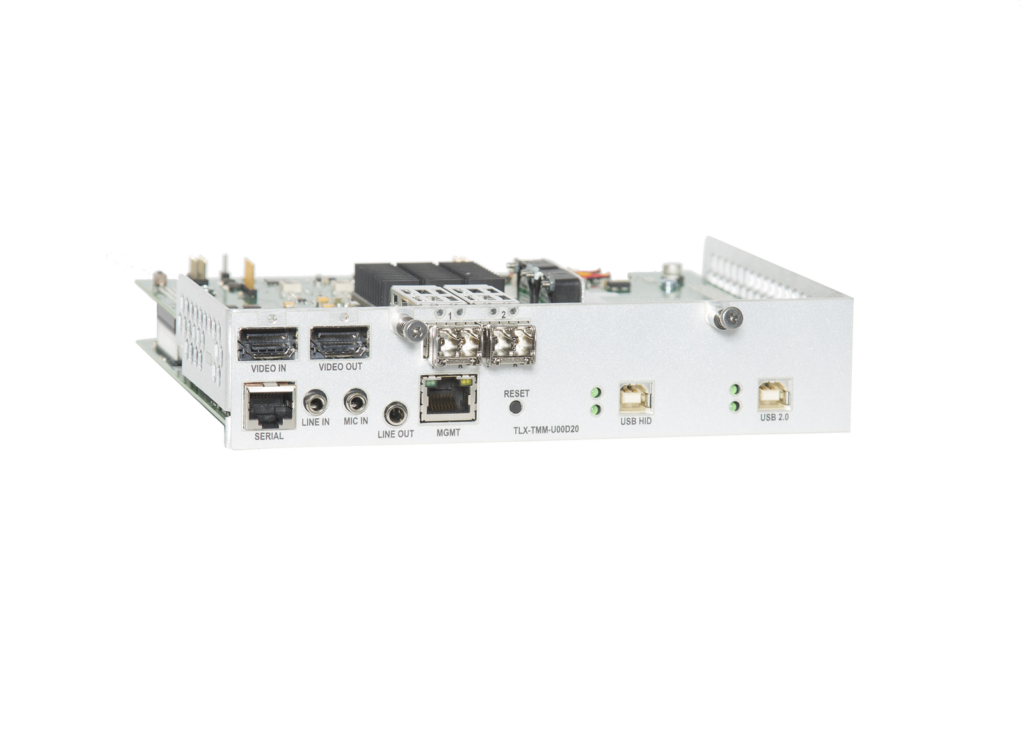

TLX-TMM-U00D20 TLX KVM extender transmitter module; single display up to 4096x2160 @ 60Hz with analog audio, Serial RS-232, USB HID and USB 2.0

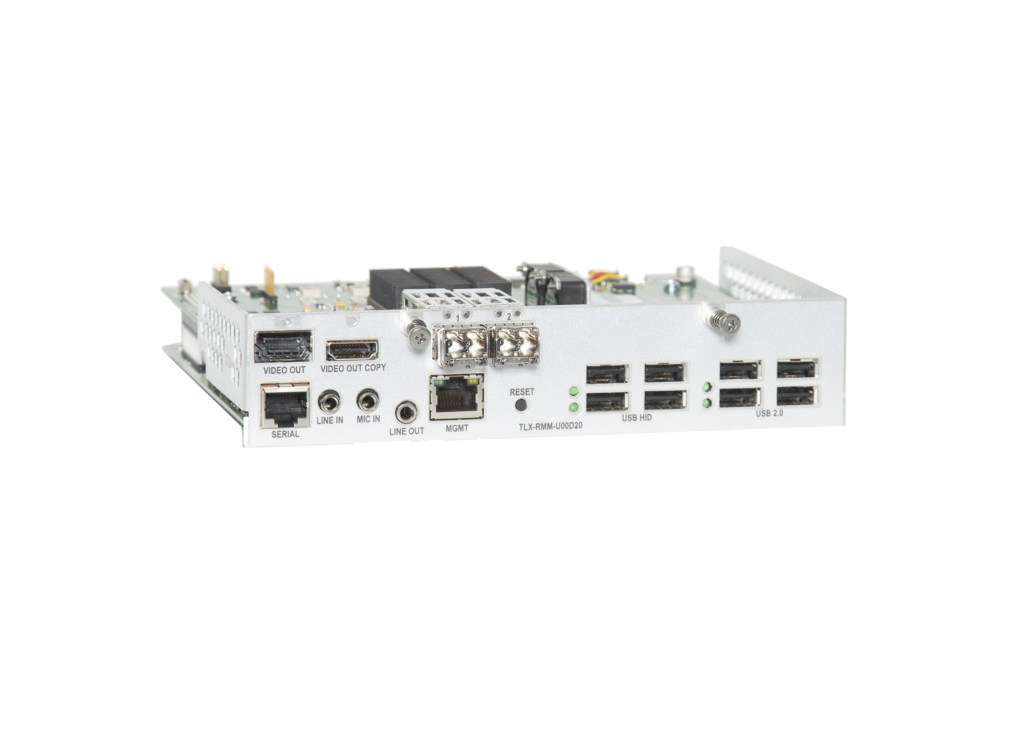

TLX-RMM-U00D20 TLX KVM extender receiver module; single display up to 4096x2160 @ 60Hz with analog audio, Serial RS-232, USB HID and USB 2.0
TLX-TMM-K00D20 TLX KVM Transmitter Module, Single Display up to 4096x2160 @ 60Hz, Analog Audio & USB HID
TLX-RMM-K00D20 TLX KVM Receiver Module, Single Display up to 4096x2160 @ 60Hz, Analog Audio & USB HID
