TLX12 Matrix Switch

12 Port, 10G Fiber Optic or CATx KVM, Video, HDMI, DisplayPort, USB, Audio Matrix Switch

  • Configurable up to a 12×12 switch
  • Up to 10Gbps bandwidth per port
  • Supports video resolutions up to 4K DCI (4096 x 2160) 60Hz 4:4:4, 30 bits per pixel
  • Re-clocking technology maintains signal integrity
  • Protocol agnostic
  • Multi-mode fiber, single mode fiber or CATx configurations
  • Completely non-blocking architecture
  • Route video and data up to 80 kilometers over fiber
  • MTBF over 100,000 hours
  • Hot-swappable optical modules
  • Replaceable modular power supply

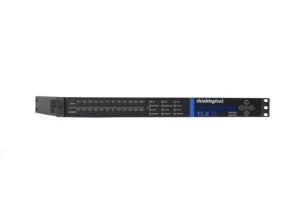

  • Push button control interface
  • System Management Portfolio for complete switch control and management
  • Certified to Common Criteria EAL4, TEMPEST SDIP 27 Level B


TLX Matrix Switches are high performance, modular, non-blocking switches for complete, end-to-end switching of video, audio and peripheral signals over multi-mode or single mode fiber optic cable or CATx cable. TLX switches are protocol agnostic, supporting numerous video, audio and peripheral signals, allowing users to consolidate all of their system switching requirements in a single chassis.

The TLX12 is ideal for smaller system applications, offering 12 ports supporting fiber or CAT6a cabling formats. Each port supports 10Gbps bandwidth, preserving signal integrity to provide uncompressed, high resolution video with no artifacts, no added latency or lost frames. Thinklogical’s re-clocking technology ensures that every video and data stream is delivered in perfect synchronization.

KVM Switch, Matrix Switch, Fiber Switch, Video Switch, Audio Switch, CATx Switch, 10G Switch, 4K Switch, HDMI Switch, DisplayPort Switch, SDI Switch, USB Switch, EAL4 Switch, DISA JITC Switch, TEMPEST Switch, Secure KVM.


  • Distance: CAT6a: 100m; Single Mode: 80km ∙ OS2 (9/125)
  • Multi-Mode 400m ∙ 33m: OM1; 82m: OM2; 300m: OM3; 400m: OM4
  • Optical Wavelength: Multi-Mode: 850nm; Single Mode: 1310nm (CWDM/DWDM call)
  • Optical Data Rate: 50Mbps to 10Gbps per port; Switching Capacity: 120Gbps

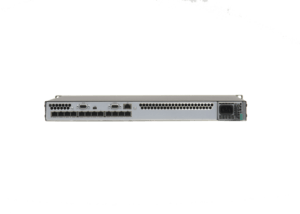

  • CATx Data Rate: 10Gbps per port; Switching Capacity: 120Gbps
  • Environmental: Operating Temperature: 0°C-50°C
  • Humidity: 5-95% RH, non-condensing
  • Compliance: Approvals for United States of America, Canada, and EU
  • Warranty: One year ∙ Extended warranties available for purchase
  • Mounting Brackets: 19” Rack Mounting Brackets Included
  • Power Consumption: 200 Watts
  • Supply Voltage: Universal AC Power Supply, 100-240VAC, 47-63Hz
  • Weight: 13lbs (5.90kg)
  • Dimensions [Tolerance ± 0.039” (1.00mm)]: Rack Size (Width): EIA 19” (482.90mm)
  • Height x Depth: 1RU 1.72” (43.69mm) x 16.56” (420.50mm)
  • Software Updates: Console/LAN
  • Firmware Updates: Mini USB Connectors (1)
  • RS-232 Serial Ports: DB9 Female Connectors (1)
  • 10/100 Network: RJ45 Connector (1)


Data Sheet

How To Buy

Part Numbers

TLX-MSC-C00012 TLX Matrix Switch Chassis with 12 CATx Ports, 10G
TLX-MSC-M00012 TLX Matrix Switch Chassis with 12 Multi-Mode Fiber Ports, 10G
TLX-MSC-MV0012 TLX Matrix Switch Chassis with 12 Multi-Mode Fiber Ports, 6G+
TLX-MSC-S00012 TLX Matrix Switch Chassis with 12 Single-Mode Fiber Ports, 10G
TLX-MSC-SV0012 TLX Matrix Switch Chassis with 12 Single-Mode Fiber Ports, 6G+
