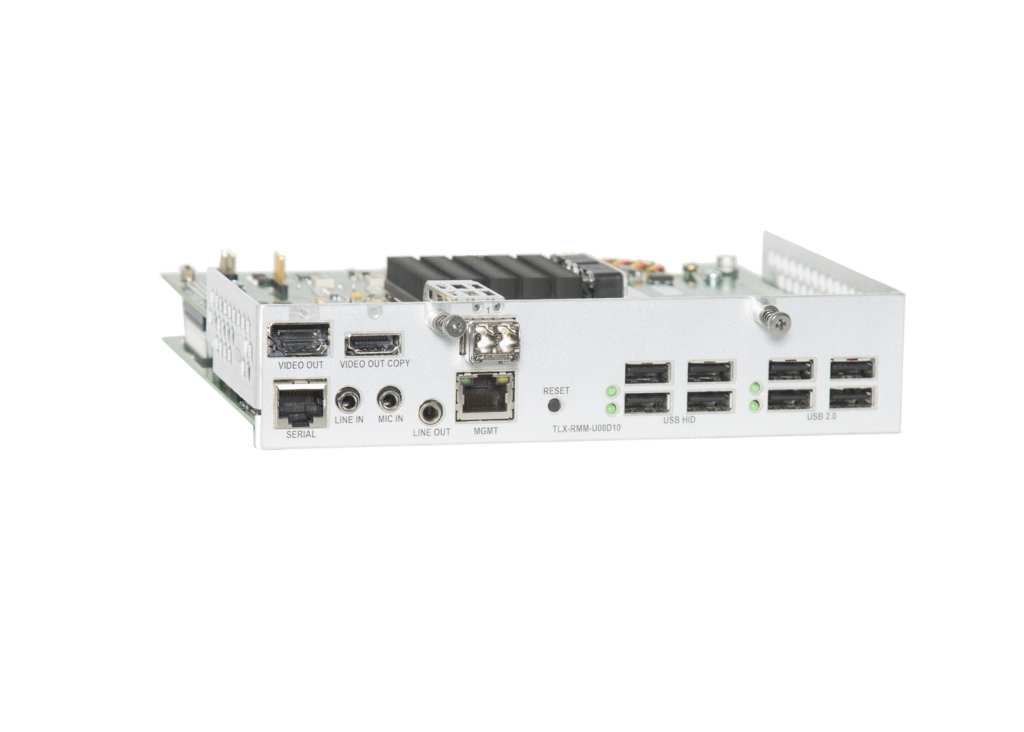

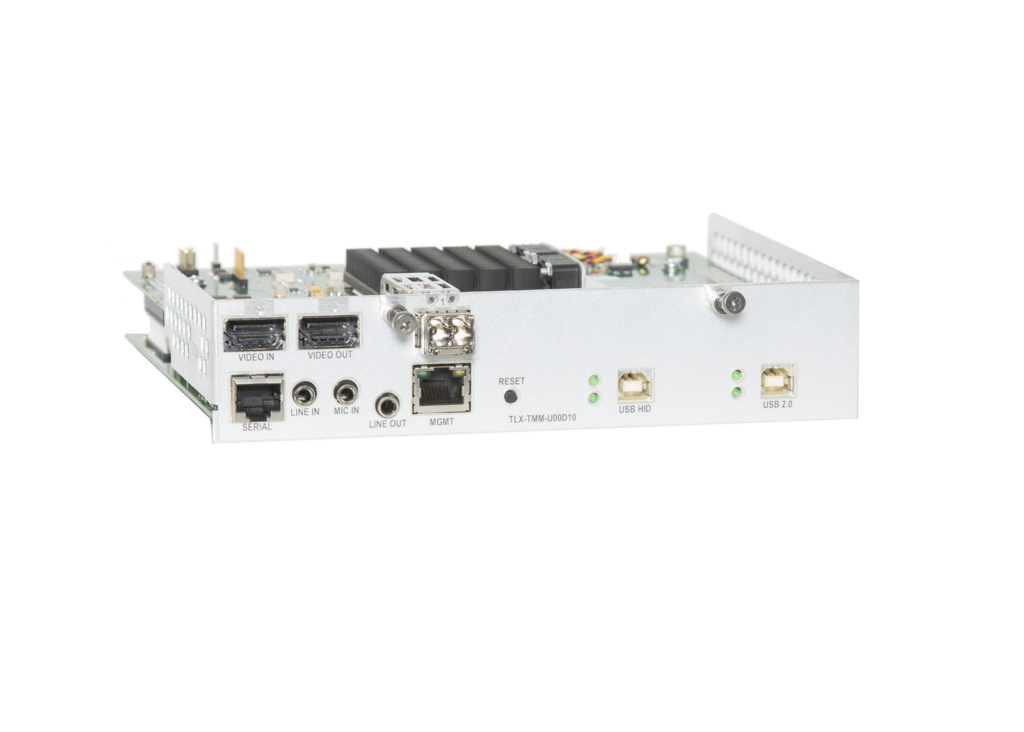

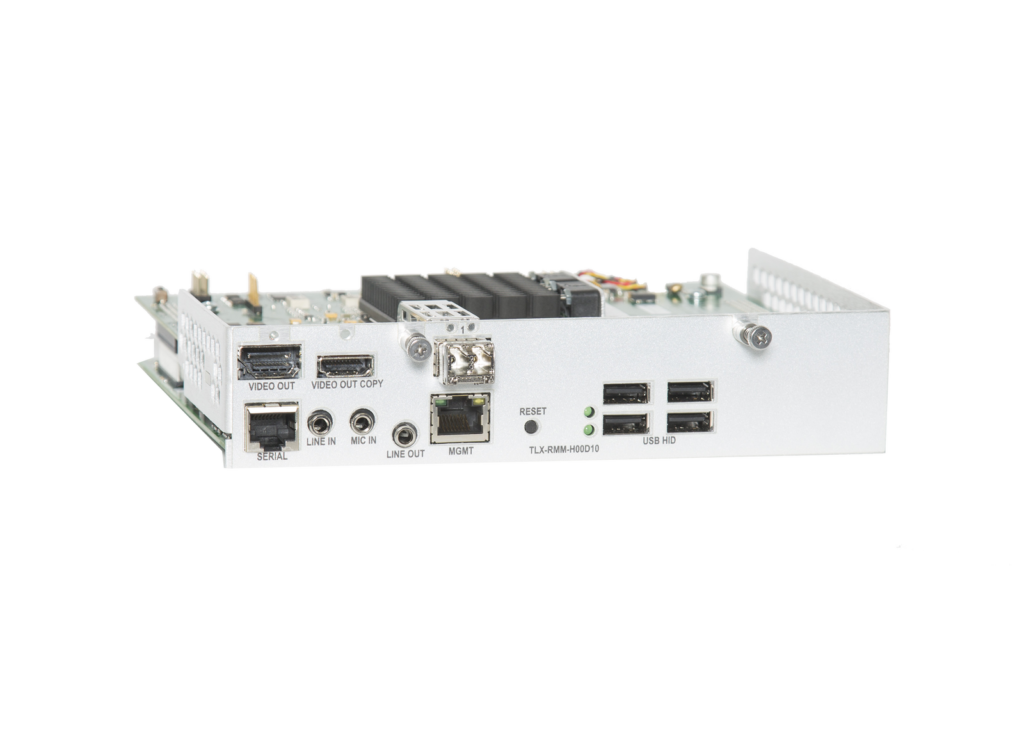

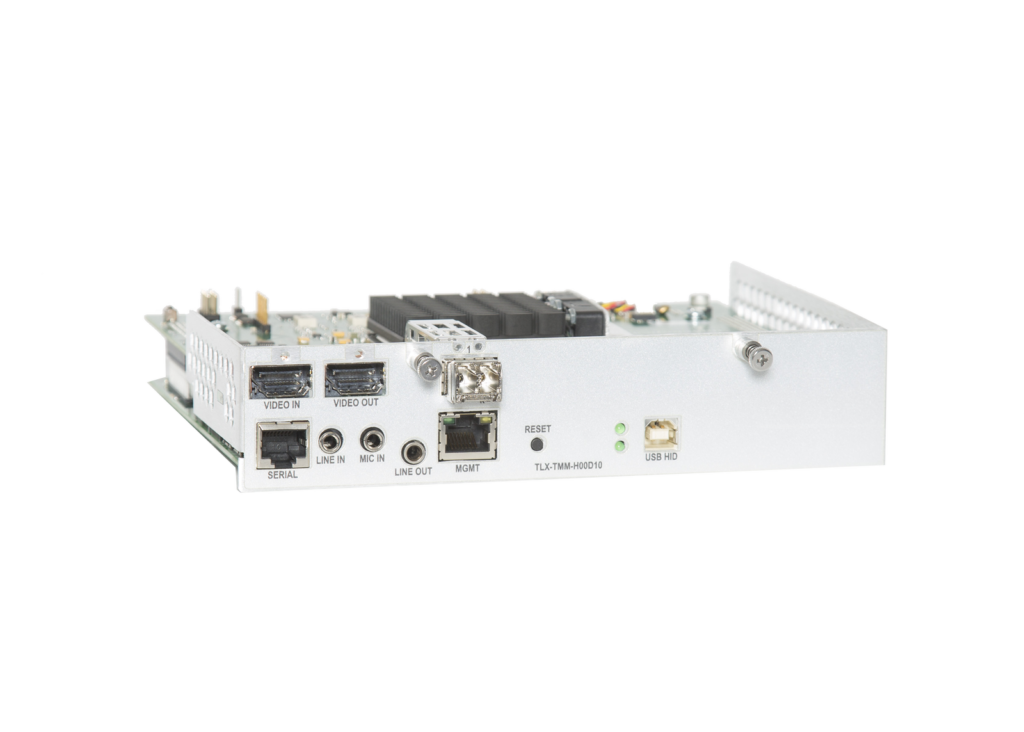

TLX10 KVM Extender
10G Fiber Optic KVM, Video, HDMI, DisplayPort, USB, Audio Extender. TLX systems offer support for:
Video Signals
- DisplayPort 1.2 up to 4096×2160 @ 60Hz
- D-Series: HDMI 1.4 up to 3840×2160 @ 30Hz
- E-Series: HDMI 2.0 up to 3840×2160 @ 60Hz with HDR
Audio Signals
- Bidirectional unbalanced analog stereo audio
- Embedded audio, with the ability to de-embed on the Receiver
Peripheral Signals
- DDC
- Serial (RS-232)
- 10/100 Network
- USB HID
- USB 2.0 (480Mbps)
Certified to TEMPEST SDIP 27 Level B
Overview
The TLX10 extension systems are designed to support a single DisplayPort 1.2 display up to 4096×2160 at 30Hz or a single HDMI 1.4 or 2.0 display to the maximum specification (3840×2160 at 30Hz), including support for HDCP content. An additional video output is provided, per input, for a local display. Extenders also support full duplex stereo audio, embedded audio (with the ability to de-embed audio at the receiver), Serial RS232, USB HID and are custom configurable to support USB 2.0 (480Mbps).
KVM Extender, Video Extender, Fiber Optic Extender, HDMI Extender, DisplayPort Extender, 4K Extender, Audio Extender, USB 2.0 Extender, USB HID Extender, 10/100 Ethernet Extender, RS-232 Serial Extender, TEMPEST Extender, DISA JITC Extender.
Specifications
| Specifications | TLX Fiber Extender Modules (TLX-TMM/RMM) |
TLX CATx Extenders (TLX-TCF/RCF) |
|
| Video Resolution | DisplayPort up to 4096×2160 @ 30Hz; 4:4:4 color depth; 10-bit color HDMI up to 4096×2160 @ 24Hz or 3840×2160 @ 30Hz; 4:4:4 color depth and 8-bit color or 4:2:2 color depth and 10-bit color | ||
| Cable | Two (2) fiber optic cables, (fiber not supplied, available for purchase) | One (1) CATx cable (CATx not supplied, available for purchase) | |
| Distance | Multi-Mode up to 400m ∙ 33m: OM1 (62.5/125); 82m: OM2 (50/125); 300m: OM3 (50/125 SX+); 400m: OM4 (50/125eSX+) Single Mode up to 80km ∙ All Distances: OS2 (9/125) | 100m: CAT6a | |
| Optical Wavelength | Multi-Mode: 850nm; Single Mode: 1310nm (CWDM and DWDM wavelengths available, contact Thinklogical for further information) | ||
| Data Rate | 10Gbps | ||
| Environmental | Operating Temperature: 0°C-50°C; Humidity: 5-95% RH, non-condensing | ||
| Compliance | Approvals for United States of America, Canada, and European Union | ||
| Warranty | One year ∙ Extended warranties available for purchase | ||
| Mounting Brackets | Brackets Included, See Modular Chassis Specifications | Surface Mounting Brackets Included | |
| Power Consumption | 20 Watts | 30 Watts | |
| Supply Voltage | Universal AC Power Supply, 100-240VAC, 47-63Hz | Desktop 5VDC | |
| Weight | 0.50lb (0.23kg) | 1.50lb (0.68kg) | |
| Rack Size | See Modular Chassis Specifications | Contact Thinklogical for Rackmount Solution | |
| Height x Width x Depth 1 | 1.65” (41.91mm) x 7.41” (188.11mm) x 9.06” (230.15mm) | 1.2” (30.50mm) x 8.86” (225.0mm) x 7.2” (182.9mm) with brackets | |
| Tolerance | ± 0.039” (1.00mm) | ± 0.039” (1.00mm) | |
| Video | TX: HDMI 1.4 (2) & DisplayPort 1.2 (2); RX: HDMI 1.4 (2) & DisplayPort 1.2 (1) | HDMI 1.4 (1) & DisplayPort 1.2 (1) | |
| Audio MIC/LINE (Configurable) | 3.5mm Jack (3) | ||
| RS-232 Serial Port (Configurable) | RJ45 (1) | ||
| USB HID | TX: USB B (1); RX: USB A (4) | N/A | |
| USB 2.0 (Configurable) | TX: USB B (1); RX: USB A (4) | ||
| Transport Connectors | LC (1) | RJ45 (1) | |
