Create a flexible, custom, space-saving and easily scalable product. Choose from the resilient, rack mount chassis or from a more compact, space-saving design for use at the desktop and/or when mounting to a wall.
Thinklogical offers a variety of modular chassis for VelocityKVM systems. Thinklogical’s modular systems allow users to create a flexible, custom, space-saving and easily scalable product. Choose from the resilient, rack mount chassis (housing up to two extenders per single rack unit) or from the more compact, space-saving design for use at the desktop. All modular chassis extenders offer a dry contact annunciator, providing an alarm warning for power failures or increased temperatures. For enhanced resiliency, each extender module is hot-swappable, complete with hot-swappable optical modules. As a system design evolves, easily convert a unit from multi-mode to single mode or swap the module to easily reconfigure a system to meet new requirements. Modular chassis includes fans to keep the system cool, and emit virtually no detectable sound to interfere with the local user.

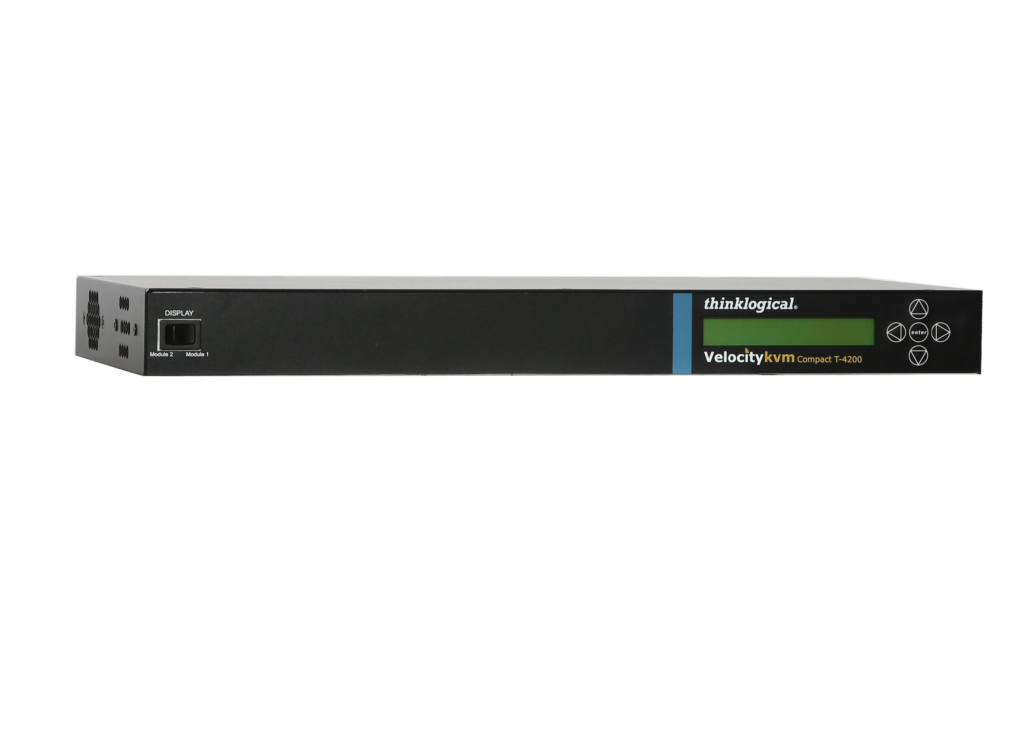

The rack mountable T-4200 chassis is ideal for high density applications, where space may be limited. The 1RU, modular design is configurable with up to two T-Series transmitter or receiver modules, in any combination – as a dual transmitter, dual receiver or transceiver.
The T-4200 Chassis is ideal for 24/7 environments, where minimal downtime is critical. The system is designed with redundant, current-sharing and hot-swappable power supplies. In the unlikely event that one power module fails, the second automatically fails over to power the unit with no delay or data loss. The failed module may be swapped out, without ever powering down the unit or interrupting operations.
Operating Temp. 0°-50°C; (32°-122°F)
Humidity 5-95% RH, non-condensing
Rack Size: EIA 19″ (483.36mm)
Height: 1U-1.72” (43.69mm)
Depth: 15.56″ (395.22mm)
Width: 17.49″ (444.25mm)
(Tolerance: ± .039″; .100cm)
Weight: 8lbs (3.63kg) per unit – 10lbs (4.54kg) loaded
Power Consumption 1 Watt – 31 Watts loaded
Compliance Approvals for US, Canada, and European Union
Warranty 12 months from date of shipment – Extended warranties available
