System Management Portfolio 2 Appliance

  • Intuitive OSD (On-Screen Display) that presents a customized display for each destination.
  • The ability to create, manage, and utilize Pools of sources.
  • A dedicated OSD (On-Screen Display) port provides a 6G or a 10G fiber-optic output that can be routed to any Thinklogical KVM extender.
  • Provides Local Administration Port access via a rear-panel HDMI connector for video, and two USB 2.0-A connectors for Keyboard and mouse. A third USB 2.0-A connector can be used for Operating System downloads, Thinklogical firmware updates or other USB applications.
  • The SMP Appliance can be viewed and controlled locally via an HDMI 1.2 video Port and either of three USB 2.0 Ports (keyboard and mouse).

Overview

The SMP Appliance is the hardware component of SMP2 and consists of a 1RU rack-mountable chassis. The SMP Appliance provides local and remote SMP access and a local OSD (On-Screen Display) for system administrators to make, modify and monitor all Matrix Switch connections and to make connections to a 6G (VX) or 10G (TLX) fiber port location, allowing system administration from any connected keyboard, video or mouse.

Specifications

Rack-Mountable Chassis Dimensions

Rack Size: EIA 19” (482.6 mm)
Depth: 14.07” (357.4 mm)
Width: 17.49” (444.3 mm)
Height: 1.72” (43.7 mm)
Tolerance: ± .039” (.991 mm)
Weight: 9.5 lbs. (4.32 kg)
Shipping Weight: 18 lbs. (8.2 kg)

I/O Ports

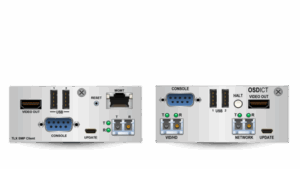

Front Panel:
1 USB-mini Firmware Updates
Rear Panel:
1 HDMI-A Local Monitor
3 USB-A Local Keyboard/Mouse/Firmware
1 DB-9 Console Port
(5) SFPs Fiber connections to/from Matrix Switch
8 GbE MagJack Gigabit Ethernet
2 AC IN Power

Operating Temp. and Humidity

0° to 50° C (32° to 122° F), 5% to 95% RH, non-condensing

Power Requirements

AC Input: 100-240VAC, 1.0A, 50/60 Hz
Universal AC Power Supply

Power Consumption

80 Watts max.

Compliance

Approvals for US, Canada and European Union

Warranty

1 Year from date of shipment. Extended warranties available.

Resources

Product Manual

How To Buy

Part Numbers

SMP-A000024 SMP 6G Multi-Mode Appliance with 24 Port Software Package
SMP-A000048 SMP 6G Multi-Mode Appliance with 48 Port Software Package
SMP-A000080 SMP 6G Multi-Mode Appliance with 80 Port Software Package
SMP-A000096 SMP 6G Multi-Mode Appliance with 96 Port Software Package
SMP-A000128 SMP 6G Multi-Mode Appliance with 128 Port Software Package
SMP-A000320 SMP 6G Multi-Mode Appliance with 320 Port Software Package
SMP-A000640 SMP 6G Multi-Mode Appliance with 640 Port Software Package
SMP-A006080 SMP 6G Multi-Mode Appliance with 6080 Port Software Package
SMP-A007040 SMP 6G Multi-Mode Appliance with 7040 Port Software Package
SMP-AX00024 SMP 10G Multi-Mode Appliance with 24 Port Software Package
SMP-AX00048 SMP 10G Multi-Mode Appliance with 48 Port Software Package
SMP-AX00096 SMP-AX00096 SMP 10G Multi-Mode Appliance with 96 Port Software Package
SMP-AX00160 SMP 10G Multi-Mode Appliance with 160 Port Software Package
SMP-AX00320 SMP 10G Multi-Mode Appliance with 320 Port Software Package
SMP-AX00640 SMP 10G Multi-Mode Appliance with 640 Port Software Package
SMP-0048MNT 48 Ports: MX48, TLX48
SMP-0080MNT 80 Ports: VX40, VX80
SMP-0320MNT 320 Ports: VX160, VX320V, TLX320
SMP-0640MNT 640 Ports: VX320, VX640, TLX640
