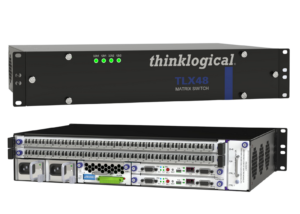

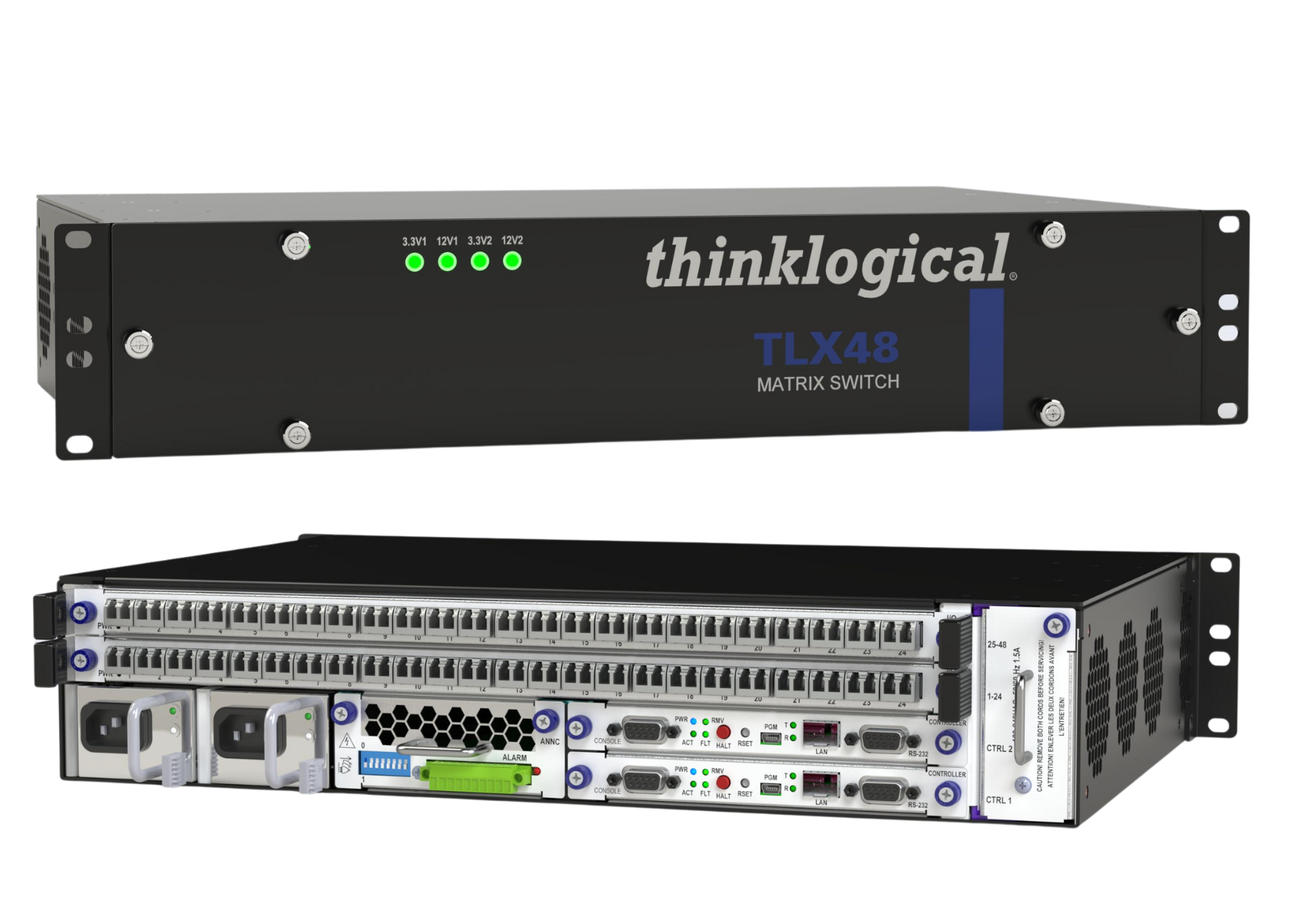

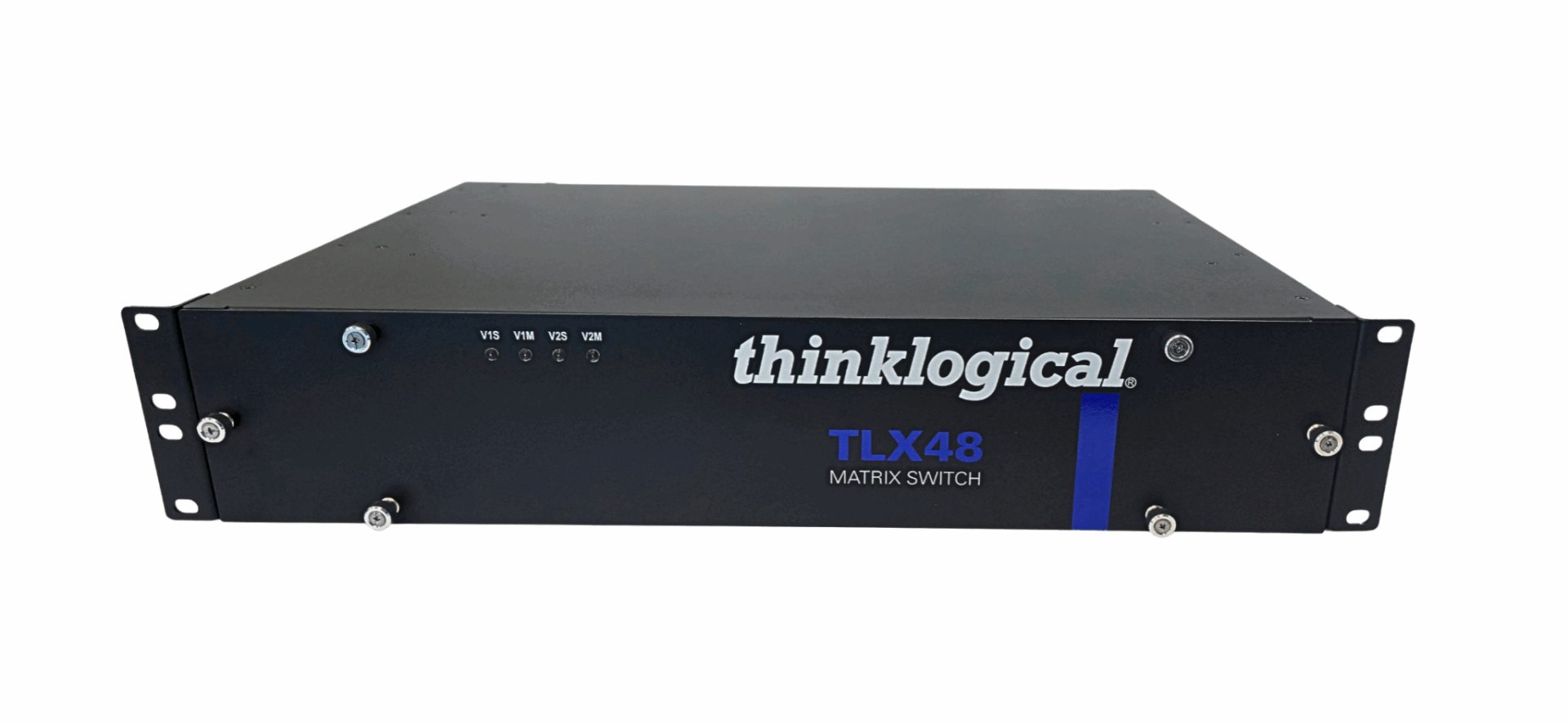

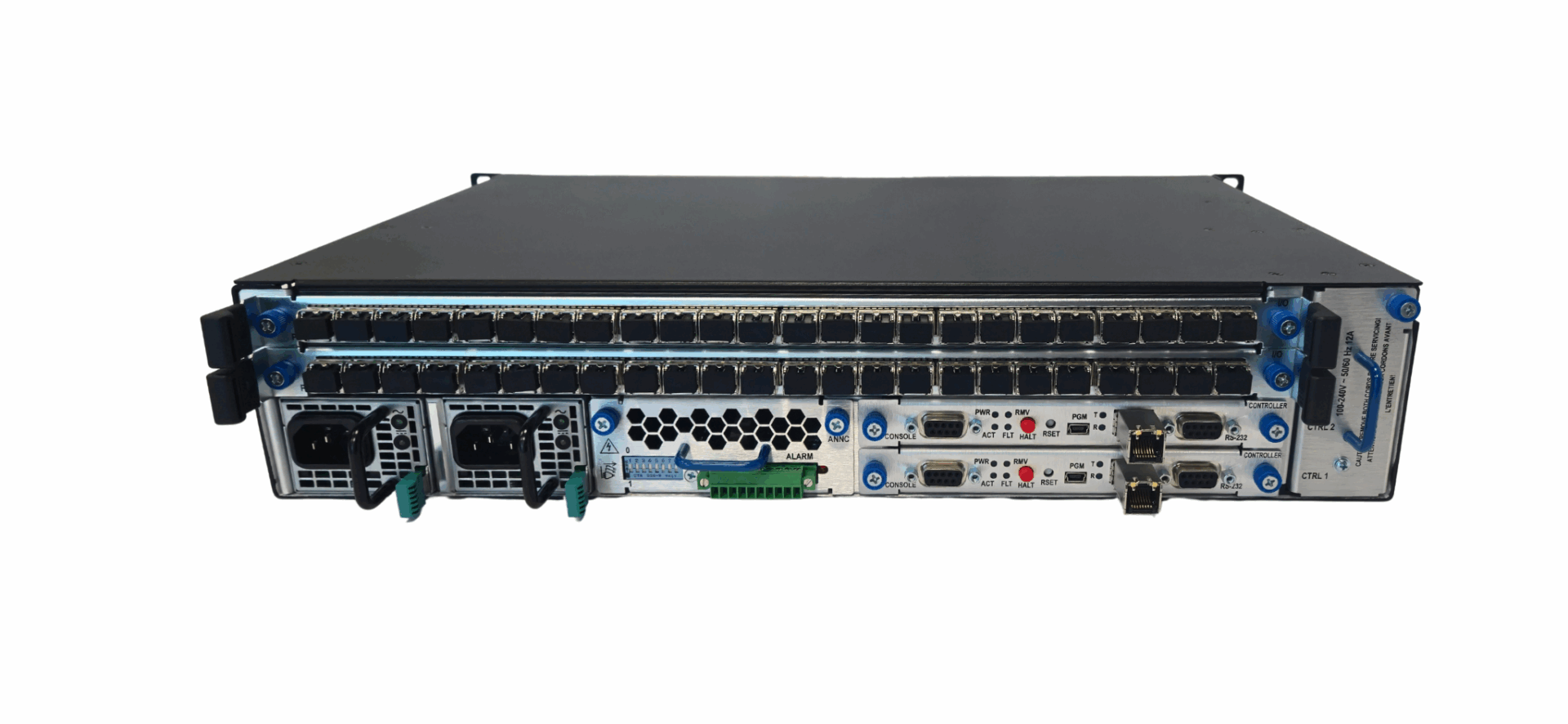

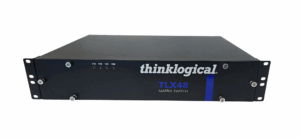

TLX48 2RU Matrix Switch
48-Port, 10G Fiber-Optic KVM & Video Matrix Switch
- Configurable up to 48 x 48 switching
- Modular data cards
- 10 Gbps bandwidth per port
- Reclocking technology maintains signal integrity
- Protocol agnostic
- Supports multi-mode & single mode fiber
- Completely non-blocking architecture
- Switch video and data up to 80 km
- MTBF over 100,000 hours
- Hot-swappable control cards, data input/output cards, power supplies, fan trays, optical modules
Optional redundant control cards with automatic failover - Redundant, current-sharing power supplies
- Compatible with System Management Portfolio (SMP) for complete switch control and management
- SNMP control protocol
- Integrated web-based Administrative Interface (ADM)
- Certifications to support secure installations
Overview
TLX Matrix Switches are high performance, modular, non-blocking switches for complete, end-to-end switching of video, audio and peripheral signals over multi-mode or single mode fiber optic cable. TLX switches are protocol agnostic, supporting numerous video, audio and peripheral signals, allowing users to consolidate all of their system switching requirements in a single chassis.
The TLX48 2RU is ideal for smaller system applications. Each port supports 10Gbps bandwidth, preserving signal integrity to provide uncompressed, high resolution video with no artifacts, no added latency, lost frames and configurable without interruption of service. Thinklogical’s re-clocking technology ensures that every video and data stream is delivered in perfect synchronization.
Information Assurance (IA) accredited for use in secure, multi-classification environments: Common Criteria EAL4, NATO NIAPC Evaluation Scheme: GREEN, TEMPEST SDIP 27 Level B and the U.S. DoD DISA JITC UC APL.
Specifications
- Optical Distance: Multi-Mode: 400 m ∙ 33 m (OM1); 82 m (OM2); 300 m (OM3); 400 m (OM4) ∙ Single Mode: 80 km (OS2, 9/125)
- Optical Data Rate: 50 Mbps to 10 Gbps Per Port; Switching Capacity: 480 Gbps
- Environmental: Operating Temperature: 0 °C – 50 °C, Humidity: 5–95% RH, non-condensing
- Compliance: Approvals for United States of America, Canada, and European Union
- Warranty: One Year From Date of Shipment. Extended Warranties Available.
- Mounting Brackets: 19” Rack Mounting Brackets Included
- Power Consumption: 150 W, 512 BTU/hr
- Supply Voltage: Universal AC Power Supply, 100-240 VAC, 47-63 Hz
- Weight: 22 lbs (10 kg) Fully Populated
- Dimensions [Tolerance ± 0.039” (1.00mm)]: Rack Size (Width): EIA 19” (482.90mm)
- Height x Depth: 2 RU 3.5″ (88.9 mm) x 12.50″ (317.5 mm)
- Console Port: DB9 Serial Interface, Linux command line
- RS-232 API Port: DB9 Serial Interface, ASCII Interface
- 1GbE Network: RJ45 Connector (1)
- Alarm: Closed contact alarm, 10-position terminal block
- Cables Included: (2) AC Power Cable, (1) CAT5, 4.5 m (CBL000001-015FR), (1) USB 2.0 Type-A to Mini-B, 2 m (CBL000105-002MR)
