Fiber Harnesses and Cable Management for Matrix Switches

Fiber Harnesses and Cable Management for Matrix Switches

Thinklogical and Belden Fiber Harness Cable Management System

Significantly reduces installation and fiber-connection configuration time and effort

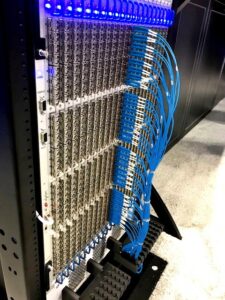

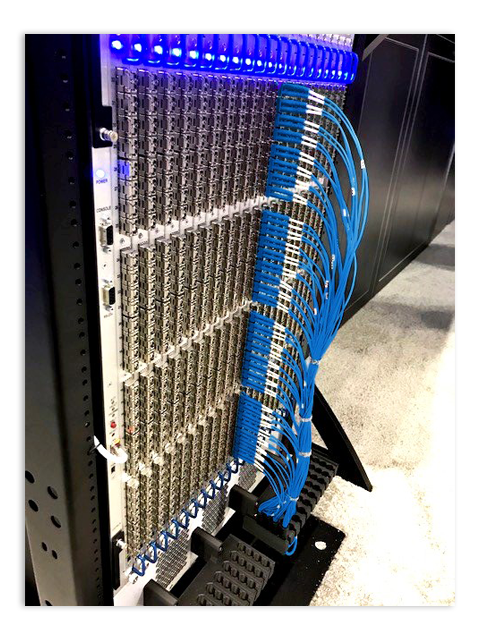

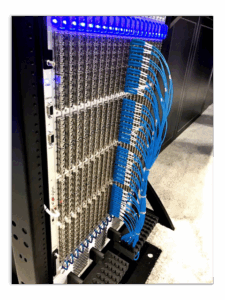

Reduce tie wraps and eliminate slack for a tidy installation
Ensure uptime and reduce disruption when moving or replacing hot-swappable switch I/O cards
Maximize routing flexibility and reduce cable congestion
Simplify assembly attachment points, multi-port patching and pulling eye removal with smaller, lighter transitions
For VX80, VX320, VX640, and TLX80, TLX160, TLX320, TLX640, TLX1280 Matrix Switches

Overview

Simplify fiber installation, configuration and maintenance to and from Thinklogical Matrix Switches with new Thinklogical Fiber Harnesses. These purpose-built fiber harnesses are the result of a design collaboration between Thinklogical and Belden, a world leader in cabling and connectivity solutions.

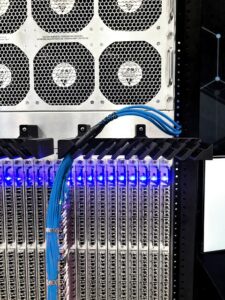

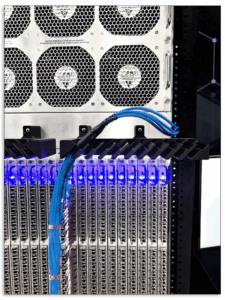

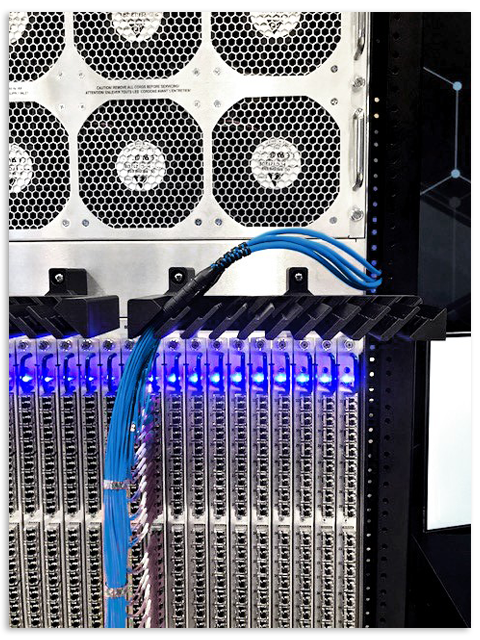

A perfect match for Thinklogical Matrix Switch I/O cards, the harnesses support clean, streamlined cable bays for reliable operation. Save time by pulling one Thinklogical Fiber Harness instead of managing bundles of loose cables. The harnesses are designed with enough slack to enable easy removal and swapping of the switch I/O cards. Completely configurable, the solution can be ordered to meet your specifications and requirements from fiber and connector type to leg quantity and length.

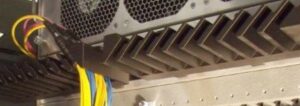

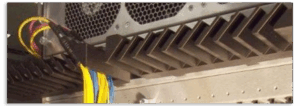

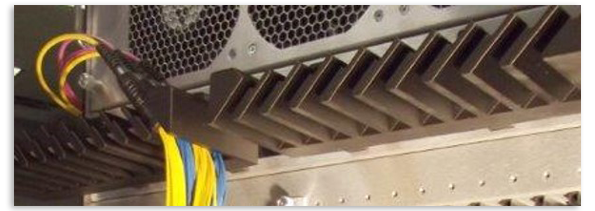

Also available are horizontal cable managers that are optimized for use with the Thinklogical Fiber Harnesses.

Specifications

Pre-configured and pre-terminated staggering legs to exact specifications of switches
Flexible options to meet solution requirements: connectors, leg lengths, jacket color, etc
Completely configurable: choose built to order or standard kits
Modular design simplifies switch I/O card maintenance and future expansion
Lighter and smaller transitions for easy attachment points using horizontal cable manager

Resources

Data Sheet

How To Buy

Part Numbers

AX109276 FX Harness Kit, TLX1280 (Top Routing), OM4, 4 x Trunks (To fill one Switch I/O Card), LC Duplex (1.6 mm x Staggered Legs) - LC Simplex (900 μm x 1.0 m x In-line Legs), ONFP, 10 m, Blue Jacket

AX109281 FX Harness Kit, TLX1280 (Bottom Routing), OM4, 4 x Trunks (To fill one Switch I/O Card), LC Duplex (1.6 mm x Staggered Legs) - LC Simplex (900 μm x 1.0 m x In-line Legs), ONFP, 10 m, Blue Jacket

AX109286 FX Harness Kit, TLX640/VX640 (Top Routing), OM4, 2 x Trunks (To fill one Switch I/O Card), LC Duplex (1.6 mm x Staggered Legs) - LC Simplex (900 μm x 1.0 m x In-line Legs), ONFP, 10 m, Blue Jacket

AX109289 FX Harness Kit, TLX640/VX640 (Bottom Routing), OM4, 2 x Trunks (To fill one Switch I/O Card), LC Duplex (1.6 mm x Staggered Legs) - LC Simplex (900 μm x 1.0 m x In-line Legs), ONFP, 10 m, Blue Jacket TLHM

AX109292 FX Harness Kit, TLX320/VX320 (Bottom Routing), OM4, 2 x Trunks (To fill one Switch I/O Card), LC Duplex (1.6 mm x Staggered Legs) - LC Simplex (900 μm x 1.0 m x In-line Legs), ONFP, 10 m, Blue Jacket

AX109295 FX Harness Kit, TLX80/VX80 (Bottom Routing), OM4, 01-05 Ports (01-10 Fibers), LC Duplex (1.6 mm x Staggered Legs) - LC Simplex (900 μm x 1.0 m x In-line Legs), ONFP, 10 m, Blue Jacket

TLHM‐1T Horizontal Cable Manager for TLX1280, Top Routing

TLHM‐1B Horizontal Cable Manager for TLX1280, Bottom Routing

TLHM‐2T Horizontal Cable Manager for TLX640/ VX640, Top Routing

TLHM‐2B Horizontal Cable Manager for TLX640/ VX640, Bottom Routing

TLHM‐3B Horizontal Cable Manager for TLX320/ VX320, Bottom Routing

TLHM‐4B Horizontal Cable Manager for TLX160, Bottom Routing

TLHM‐5B Horizontal Cable Manager for TLX80/ VX80, Bottom Routing

Custom Configurations Available. Contact Thinklogical to Learn More.
