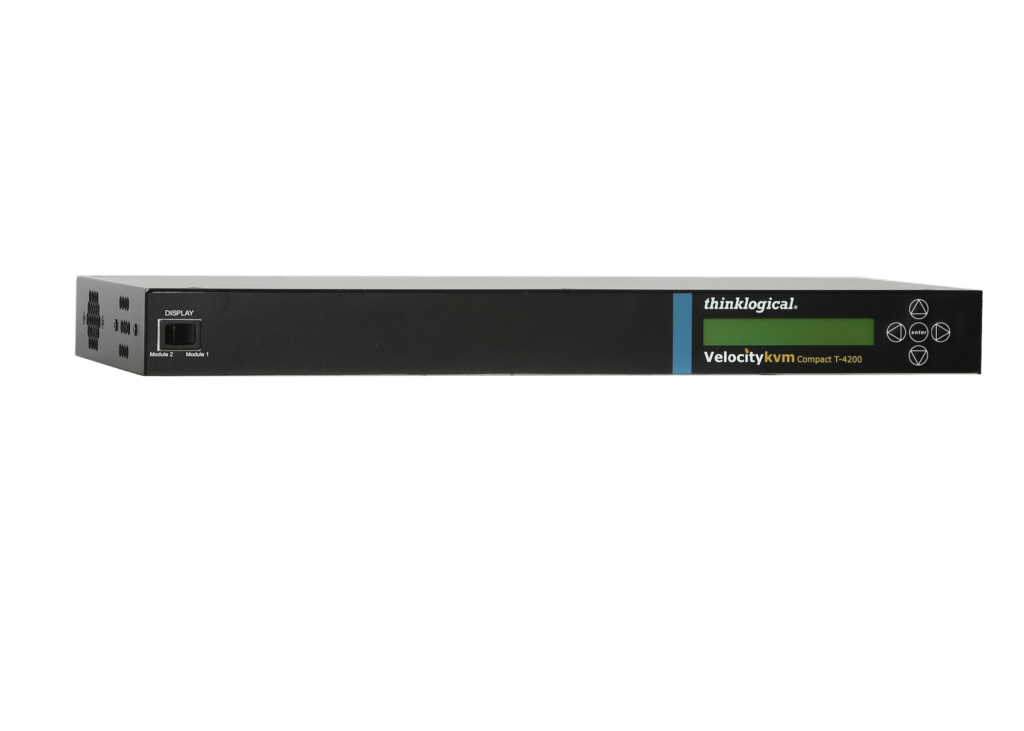

Compact T-4200 Chassis

Create a flexible, custom, space-saving and easily scalable product. Choose from the resilient, rack mount chassis or from a more compact, space-saving design for use at the desktop and/or when mounting to a wall.

Overview

Thinklogical offers a variety of modular chassis for VelocityKVM systems. Thinklogical’s modular systems allow users to create a flexible, custom, space-saving and easily scalable product. All modular chassis extenders offer a dry contact annunciator, providing an alarm warning for power failures or increased temperatures. For enhanced resiliency, each extender module is hot-swappable, complete with hot-swappable optical modules. As a system design evolves, easily convert a unit from multi-mode to single mode or swap the module to easily reconfigure a system to meet new requirements. Modular chassis includes fans to keep the system cool, and emit virtually no detectable sound to interfere with the local user.

Specifications

Operating Temp. 0°-50°C; (32°-122°F)

Humidity 5-95% RH, non-condensing

Dimensions

Rack Size: EIA 19″ (483.36mm)

Height: 1U-1.72” (43.69mm)

Depth: 8.91″ (226.31mm)

Width: 17.49″ (444.25mm)

(Tolerance: ± .039″; .100cm)

Weight: 7lbs (3.18kg) per unit – 9lbs (4.08kg) loaded

Power Consumption 1 Watt – 31 Watts loaded

Compliance Approvals for US, Canada, and European Union

Warranty 12 months from date of shipment – Extended warranties available

Resources

Data Sheet

How To Buy

VCS-004200 T-Series Compact 4200 Modular Chassis Configure with up to two T-Series Compact 4 Module
